Formlabs Fuse Sift
SKU: FS1-SIFT-230V-OLS
VENDOR: Formlabs
Pickup available at 7A Kent Street, Yarraville, VIC.
Usually ready in 4 hours if in stock
Formlabs Fuse Sift
Default Title
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638

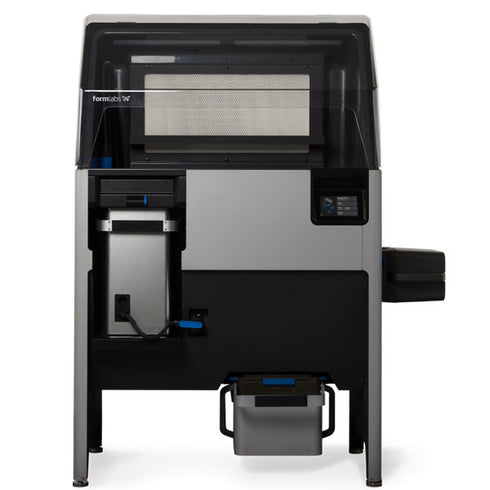

All-In-One Powder Recovery for the Fuse 1
The Fuse Sift is a safe, efficient powder recovery system for the Fuse 1. This all-in-one station combines part extraction, powder recovery, storage, and mixing in a single free-standing device. Highly convenient and compact, this is the most functionality you'll get in a single device on the SLS market.
The best sidekick an SLS 3D printer could ask for
The Fuse 1 is an affordable, intuitive SLS 3D printer for strong, durable nylon parts. The Fuse Sift completes the Fuse 1 workflow.
Compact, enclosed system
A negative air pressure system keeps powder inside while enabling open access and easy cleanup.
Dimensions: 1.0 x 0.6 x 1.5 m
Low waste
A 30% material refresh rate means you can print with up to 70% recycled powder, indefinitely. Fuse Sift's sieve filters out particles to be remixed with new powder and reused in future prints.
Automatic powder mixing
Fuse Sift will dispense and mix used and new powder automatically so you can reduce waste and control your powder supply.
Nonstop printing
Reduce downtime by transferring modular build chambers and powder cartridges between the Fuse 1 and Fuse Sift for a nonstop, cyclical workflow.
A complete toolkit
The Fuse Sift includes a set of finishing tools to help you clean excess powder from parts with ease.
- Large Brush
- Small Brush x 2
- Pipe Cleaners
- Dental Picks
- Vacuum Brush Tool
- Vacuum Crevice Tool
Formlabs Fuse Sift Technical Specifications
| Printer Compatibility | Fuse 1 |
| Dimensions | 99.1 x 61.0 x 188.8 cm 39.0 x 24.0 x 61.8 in Height when open: 190 cm (75 in) |
| Fuse Sift Dimensions (W x D x H) |
99.1 x 61.0 x 188.8 cm 39.0 x 24.0 x 61.8 in |
| Build Chamber Dimensions (W x D x H) |
27.9 x 34.2 x 48.9 cm 11.0 x 13.5 x 19.3 in |
| Minimum Access Dimensions (W x D x H) |
221.1 x 122.0 x 218.0 cm 87.1 x 48.0 x 85.8 in |
| Fuse Sift Weight | 93 kg (without build chamber or powder) 205 lb (without build chamber or powder) |
| Build Chamber Weight | 11 kg (17.6 kg, full with 20% packed powder) 24.3 lb (38.8 lb, full with 20% packed powder) |
| Air Filtration Technology | Replaceable HEPA filter |
| Build Volume (W x D x H) |
16.5 x 16.5 x 30.0 cm (with radiused corners) 6.5 x 6.5 x 11.8 in (with radiused corners) |
| Fresh Powder Hopper Capacity | 10.7 kg Nylon 12 23.6 lb Nylon 12 |
| Used Powder Hopper Capacity | 9.8 kg Nylon 12 21.6 lb Nylon 12 |
| Operating Environment | 18 - 26 °C 68 - 80 °F <30% ambient humidity |
| Air Handling | Negatively pressurized hood with replaceable HEPA filter Independent venting system |
| Air Filtration |
Replaceable HEPA medium |
| Power Requirements | With a vacuum that draws less than 6 A (230 VAC) / 12 A (120 VAC): EU: 230 VAC, 7.5 A (dedicated circuit) US: 120 VAC, 15 A (dedicated circuit) With a vacuum that draws more than 6 A (230 VAC) / 12 A (120 VAC): EU: 230 VAC, 10 A (dedicated circuit) US: 120 VAC, 20 A (dedicated circuit) |
| Vacuum Requirements | Auxiliary vacuum with static dissipative components that is grounded and bonded (e.g., a NFPA 652 compliant vacuum) |
| Connectivity | Wi-Fi (2.4 GHz) Ethernet (1000 Mbit) USB 2.0 |
| Ethernet Connectivity | RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T. |
| Wi-Fi Connectivity | Protocol: IEEE 802.11 b/g/n Frequency: 2.4 GHz Supported security: WPA/WPA2 |
| USB Connectivity | USB (rev 2.0) B port with a USB A-B cable |
| Sound Emission | Does not exceed 76.5 dB(A) |
| Fuse Sift Control | Interactive touchscreen, physical buttons |
| Included Accessories | Large Brush Small Brush x 2 Pipe Cleaners Dental Picks Gloves Dust Mask Safety Glasses Vacuum Brush Tool Vacuum Crevice Tool Lifting Straps |
