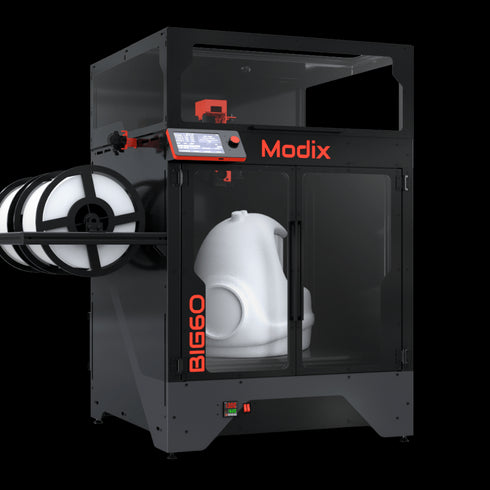

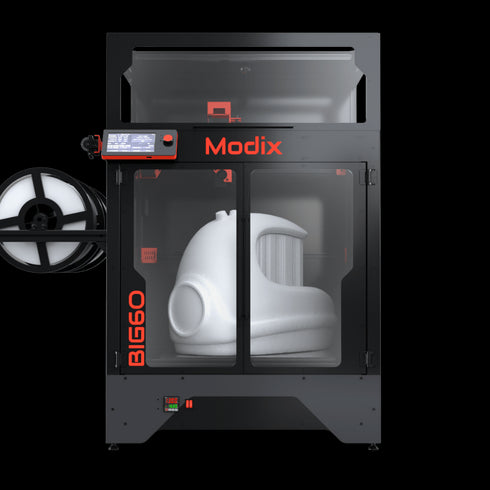

Modix BIG 60 V4 3D Printer

The Modix BIG-60 v4 is a large format 3D printer with a 600 X 600 X 660 mm build volume, premium components, and a competitive price. This flagship model has been continuously improved since its 2017 debut, ensuring backward compatibility for long-term high returns on investment.

BIG-60 Quick Specifications:

• Delivery: self assembly kit
  • Assembly guide includes videos and online 3D models that can be rotated and zoomed.
  • See below for assembly options
• Print volume: 600 X 600 X 660 mm (XYZ).
• Machine Size (WxDxH): 906x1060x1,506 mm
• Shipping Weight: 120 KG
• Additional add-ons available listed below.
• Price includes 12 months of warranty and lifetime support.
• Warranty can be extended up to two additional years

BIG-60 Features

Chassis & Enclosure

• Frame: 40x40 T-slot aluminum profiles with powder-coated laser-cut brackets.

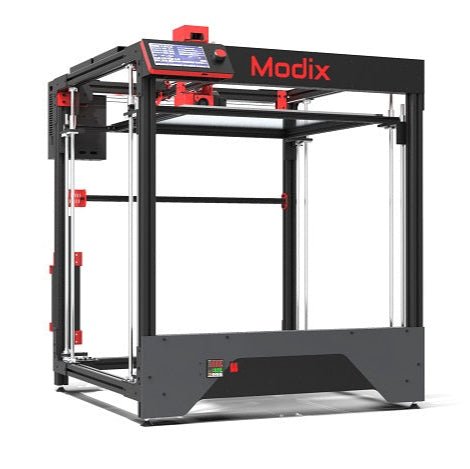

• Enclosure: Optional enclosure (3mm black Aluminum Composite Panels)

Electronics & Controller

• Controller: UK-made Duet 2 WiFi, featuring:
  • 32-bit processor and quiet TMC2660 stepper drivers (up to 256 micro-stepping).
  • Remote access via PC, tablet, or smartphone.
  • Full control through an intuitive web interface.
• Power Requirements: 230V 15A

Automation & Calibration

• Fully automated calibration routines:
  • Bed leveling, bed tilting, gantry alignment, and Z-offset calibration.

Griffin Print Head

• High-Performance Design: High-flow hotend supports up to 340°C for advanced filaments.
• Reliable: Rigid design prevents damage during large-scale printing.
• User-friendly: Easy nozzle swaps and filament system changes.
• Smart: Automatic Z-offset calibration for precision.

Printing Technology

• IDEX Add-on (Optional): Independent dual extruder for clean dual-material printing
  • Automatic Filament Changer - The optional IDEX add-on can also be used as an automatic filament changer.
• Speed: Travel speed of up to 350 mm/s, and printing of up to  250 mm/s.

Print Bed

• 6.35mm thick Alcoa Mic6 aluminum plate with dual heating zones.
• Optional removable magnetic bed for easier part removal.

Motion System

• High-precision HIWIN linear guide rails and Gates GT2 timing belts.
• Motors: NEMA-23 (X & Z) and NEMA-17 (Y).

Filament Support

• Compatible with various materials, from beginner-friendly PLA and PETG to advanced ABS, ASA, and Nylon.
• Optional active air filter for enhanced safety with high-temp filaments.

Additional Features

• Touchscreen: 7-inch Duet3D touchscreen - integrated with the controller
• Crash Detection: Prevents print head damage in case of leveling probe failure.
• Clog Detection: Pauses prints and saves jobs during filament issues.

Software

• Open-source Duet RepRap firmware with slicer compatibility (Slic3r, Cura, Simplify3D, PrusaSlicer).

Optional Add-Ons Available

• Enclosure: Improve the printer stability providing higher quality print results. Also captures the heat generated by the heat bed whichs helps reduce wrapping and cracks due to uneven part cooling.
• Griffin Ultra Hotend: For faster printing of large objects.
• Griffin High Resolution Hotend: Print with a layer height as fine as 50 microns, ensuring precise retraction and tight tolerances for high-accuracy printing.
• IDEX dual printing: enables independent dual extruder printing for cleaner, more precise dual-material prints, advanced geometries with water-soluble supports, and automatic filament changeover
• IDEX Calibration Tool: Achieve precision like never before with this hands-free calibration tool
• Magnetic Bed: Enjoy easy part removal and easier bed maintenance.
• 8KG Spool Mount: Improved capacity for extended printing jobs.
• Extra PEI Sheet: Spare PEI sheet at size of 660x660mm
• Active Air Filter: Multi-layer system with HEPA and carbon filters for a clean working environment
• Tilt screen: A combo set of a tilt screen & large emergency button and a frontal power switch.
• 8KG Spool Mount: Improved capacity for extended printing jobs.
• Power Distribution (PDU): Better arrange all AC cables goes into the machine (bed heater, electronic box, noise reduction) into one integrated high-power power distribution unit (PDU).
• Z Axis Hiwin Rails: Upgrade the default Z axis smooth rods with high precision HIWIN linear rails.
• Casters: The casters add-on will allow you to move the printer around with ease.

Assembly Options

The Modix BIG 60 3D printer comes as a self assembly kit but Thinglab also offers professional assembly options

We offer three flexible assembly and service options for your Modix 3D printer to suit your needs:

1) DIY Kit – For the hands-on enthusiast, you’ll receive a complete self-assembly kit. Build and calibrate your 3D printer yourself, giving you full control over the process. Perfect for those who love a challenge and prefer to go solo.

2) Assembly + Calibration Check – Assemble the kit yourself, and then let us take it from there! We’ll carefully check your assembly, calibrate the printer for optimal performance, and offer the option of a service contract for ongoing support.

3) Fully Assembled + 12-Month Service – Sit back and relax! We’ll handle the entire assembly and calibration for you, ensuring it’s ready to go out of the box. This option also includes a 12-month service contract for peace of mind and expert support.

Contact our team to discuss assembly and calibration options in more detail.
