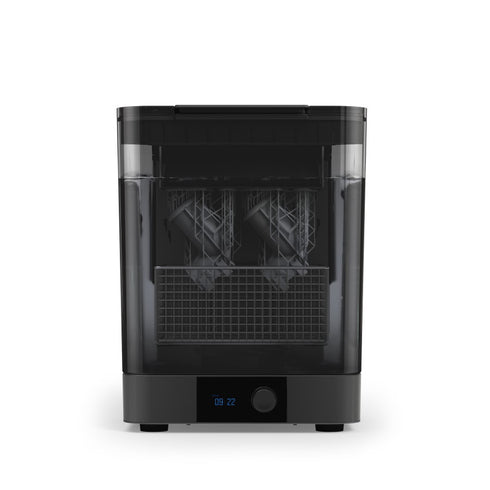

Formlabs Form Wash (2nd Generation)
SKU: FH-WA-02
VENDOR: Formlabs
Pickup available at 7A Kent Street, Yarraville, VIC.
Usually ready in 4 hours if in stock
Formlabs Form Wash (2nd Generation)
Default Title
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638
A Consistent, Automated Workflow
Form Wash automatically cleans printed parts thoroughly and efficiently with IPA or alternative solvents. Keep parts directly on the Build Platform as you transition them from the printer to Form Wash, or remove parts and place them in the wash basket.
Set and Forget
Parts are precisely and thoroughly agitated in solvent with an impeller, getting every nook and cranny perfectly clean, automatically for the appropriate time. When washing completes, the Form Wash automatically raises parts out of the IPA so they can air dry.
Flexible Configuration
With adjustable platform mounts the Form Wash (2nd Gen) accommodates build platforms from the Form 4/4B, Form 3/3B and Form 2. The height of the mounts can also be adjusted so the user has more control over solvent volumes.
Form Wash (2nd Generation) Technical Specifications
| Printer Compatibility | Form 4, Form 4B, Form 3/B/+, Form 2 |
| Dimensions (cm) | 31.5 x 29.3 x 40.5 cm |
| Height when open (cm) | 71.4 cm |
| Weight (kg) | 8.6 kg |
| Bucket Volume (L) | 14.4 L |
| Maximum Part Size (cm) | 20 x 14.5 x 19.5 cm |
| Suggested Operating Environment (°C) | 18-28 °C |
| Agitation Method | Magnetically coupled impeller |
| Included Accessories |
|
| Power Requirements | 90-240 V, 2.0 A 50/60 Hz, 50 W |
| Compatible Solvents | IPA, TPM, Water |
