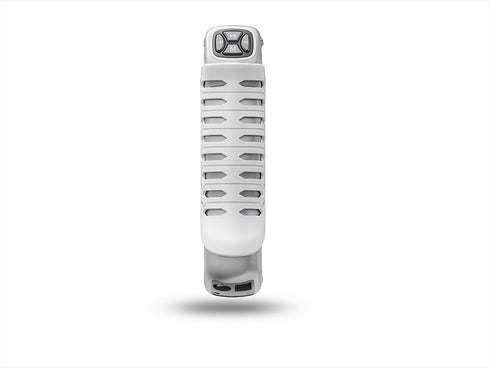

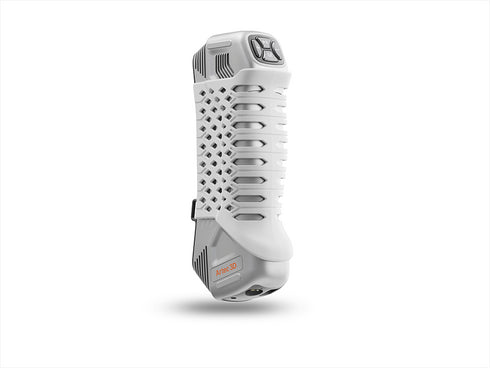

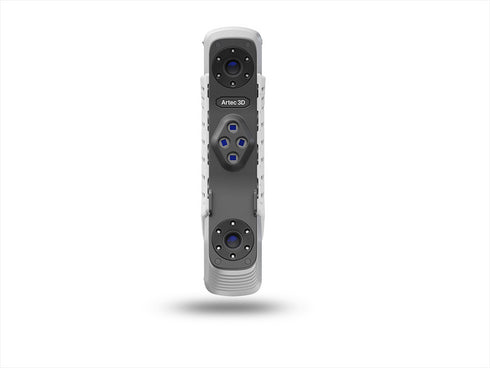

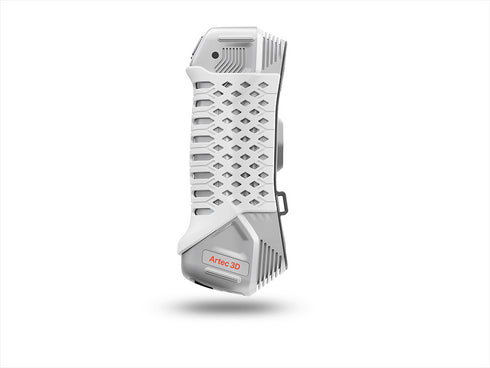

Artec Point 3D Scanner

Artec’s first target-based 3D laser scanner puts ISO-certified, metrology-grade 3D scanning in the palm of your hand. Artec Point rapidly captures complex surfaces – even those featuring black or shiny exteriors – with up to 0.02 mm accuracy for quality control and reverse engineering.

Alternate between grid, parallel, and single-laser modes to maximize results and use HD cameras fixed at a steep viewing angle to capture in narrow areas. With a light yet robust metal chassis, the Artec Point is also versatile for use in demanding industrial environments.

$48,588.10

SKU: ART-PNT

VENDOR: Artec 3D

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

Artec Point 3D Scanner

Default Title

PRODUCT INFORMATION
Specifications
PRODUCT INFORMATION

Summary

Artec’s first target-based 3D laser scanner puts ISO-certified, metrology-grade 3D scanning in the palm of your hand. Artec Point rapidly captures complex surfaces – even those featuring black or shiny exteriors – with up to 0.02 mm accuracy for quality control and reverse engineering.

Alternate between grid, parallel, and single-laser modes to maximize results and use HD cameras fixed at a steep viewing angle to capture in narrow areas. With a light yet robust metal chassis, the Artec Point is also versatile for use in demanding industrial environments.

When it comes to capturing intricate objects with high repeatability and pinpoint accuracy, Artec Point always delivers, making it the ideal solution, wherever you need fast, reliable data.

Stunningly accurate models – every time

With super high accuracy, solid tracking, and dedicated modes for complex geometries, the Artec Point 3D scanner captures highly repeatable metrology data you can count on.

A metrology-certified 3D laser scanner

Artec Point’s high accuracy and repeatability are ISO & VDI/VDE-certified, so you can use it for advanced metrology, confident that you’ll get immediate, reliable results.

Capture in confined areas

With a featherweight frame and ergonomic design, Artec Point can easily be used one-handed, and tilted to scan under, behind, or into seemingly unreachable areas.

Achieve high repeatability

With an intuitive interface and unshakable tracking, Artec Point ensures that you get repeatable results regardless of operator skill, without having to fine-tune any settings.

Robust build quality

Housed in a metal, grip-friendly casing, the Artec Point 3D scanner is ideal for industrial metrology applications where durability is essential.

Adapt to different surfaces in a single click

Artec Point’s three modes allow you to switch between scanning large objects at pace, capturing intricate details, and digitizing deep holes, at the click of a button.

Quick Specs

Attribute Specification
Scanner type Handheld
3D Light Source Blue laser, class II (eye-safe)
3D Point Accuracy (up to) 0.02 mm (0.0008 in)
Volumetric Accuracy (up to) 0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft)
With Artec Metrology Kit 0.015 mm + 0.015 mm/m (0.0006 in + 0.0006 in/ft)
Weight 570 grams (20.1 oz)
Scanning Rate (up to)  2.8 million measurements/s
Capture Rate (up to) 120 FPS
Scanning Area 700 × 600 mm (27.6 × 23.6 in)
Depth of Field 550 mm (21.7 in)
Size of Scanning Object/Area Small to Large (S–L)
Certification ISO 17025 accredited based on VDI/VDE 2634 & JJF 1951
Specifications

Resolution & Accuracy:

  • Resolution: Up to 0.02 mm.
  • Accuracy: Up to 0.02 mm.
  • 3D Accuracy Over Distance:

Scanning Range:

  • Object/Area Size: Small to Large (S–L).
  • Working Distance: More than 300 mm.
  • Linear Field of View @ Furthest Range: Up to 700 × 600 mm.
  • Depth of Field: 550 mm.

Speed:

  • 3D Reconstruction Rate (Real-Time Fusion): Up to 120 fps.
  • Data Acquisition Speed: Up to 2.8 million measurements per second.

Scanning Modes:

  • Ultra-Fast Scanning: 17 crossed blue lasers.
  • Hyper-Fine Scanning: 7 parallel blue laser lines.
  • Deep Hole Scanning: 1 single blue laser line.

Hardware:

  • Scanner Type: Handheld.
  • Power Source: AC/DC power adapter, 24V.
  • Interface: USB 3.0.
  • 3D Structured-Light Source: Class II blue laser (eye-safe).
  • Dimensions (H×D×W): 203 × 80 × 44 mm.
  • Weight: 0.57 kg (1.3 lbs).
  • Warranty: 1 year.

Compatibility:

  • Supported OS: Windows 10, 11.
  • Recommended Computer Parameters:
  • Minimum Computer Requirements:

Output Formats:

  • 3D Mesh: OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB.
  • CAD: STEP, IGES, X_T.
  • Measurements: CSV, DXF, XML.
