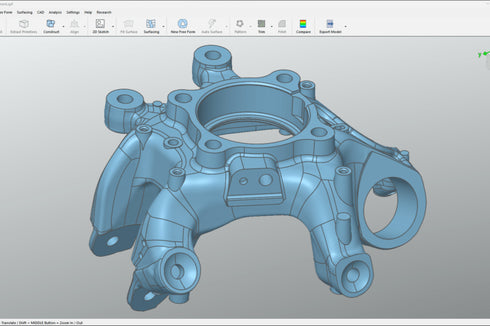

Full 3D Scan to CAD Software

Scan to CAD software for transforming 3D scan meshes from any 3D scanner into CAD models. Equipped with simple yet powerful features you can use to quickly reverse engineer your digitised data into ready-to-use models. Explore some of the main features

Scan Data Import

Load data from any scanner using the industry standard STL, OBJ or PLY mesh files. For long-range scanners, the data can be imported using PTX file format. Being a 64-bit application allows the user to load any size mesh. For the purposes of manipulation the build-in polygon reduction function allows the user to create a mesh with a suitable number of triangles without compromising the quality of the mesh.

Interactive selection

Simple to use tools to quickly extract areas of interest. Magic wand, brush and free-form selection allow the user to identify the areas that represent features or free-form surfaces

Primitives extraction

Reconstruct planes, cylinders, cones and spheres with relations between them such as perpendicularity, parallelism and coincidence.
You can also create reference geometries like lines and points for use in aligning mesh to space operation for correctly positioning the object into the world coordinate system

Symmetry Plane

Find a plane of symmetry of the object. Use the analyser to identify the quality of the position of the plane. Fine-tune the position with on-screen controls to achieve the best results

Object align

Position the object into the world coordinate system using the extracted primitives. The interactive definition of the coordinate system allows the user to adjust the correct orientation of the object

2D Sectioning

Interactive sectioning allows the user to extract reference points for 2D Sketching. Align the section plane to extracted primitives, CAD faces and even create section interactively on the screen. For the purposes of lofting - the user can also create multiple sections at once

Constrained 2D Sketching

Use dimensions and constraints to create accurate sketches like in any other CAD package

3D Sketching, Loft, Sweep surfacing

Draw free-form curves directly on the reference mesh then create surfaces by standard commands - loft, sweep, pipe. Join the surface or use them in trimming operations

Fit Surface

Select an area of interest and let the software approximate the selection with a free-form surface. The resulting surface is extended so it is suitable for trimming. The real-time deviation colour map instantly shows the quality of the surface. The automatic option allows the user to create a surface as close as possible to the reference mesh

Free Form Modelling

Quad surface allows the user to reconstruct a free-form surface which is not possible with the standard surfacing methods.
Proprietary snap-to-mesh technology allows even non-professionals to create shapes in no time - something not available in any other solutions

Real-time deviation analyser

Speed optimised real-time distance colour map allows the user to keep everything in control and get the most accurate results

Automatic Surfacing

Create surfaces on organic shapes with just the click of a button.
No user interaction required.
QUICKSURFACE provides you with one of the best automatic surfacing available today. The algorithm optimises the number of resulting NURB patches to be minimal. The surface quality is G2 everywhere and G1 at extraordinary points

Hybrid parametric modelling

Together with being parametric for the standard features, the software allows you to create CAD models as a combination of free-form and prismatic features. The user can always modify even the free-form surfaces if needed and get the results reconstructed.

Trimming & Boolean operations

Create surfaces or solids by using mutual trim operation or boolean operations on solids. The coloured display and diagnostic tools allow you to identify the issues while performing these operations

Fillet & Chamfer

The chamfer and fillet operations provide a real-time analyser. Just drag the arrow to define the fillet radius on the screen and immediately see the deviation of the fillets against the reference mesh. And all this in real-time

Deviation Analyser

Control the accuracy of your reconstruction with the efficient distance colour map. Compare the CAD model against the reference mesh at any time during the process

Link to other CAD Packages

Export reconstructed surfaces or solid models for use in other packages using the industry standard format STEP or IGES.
