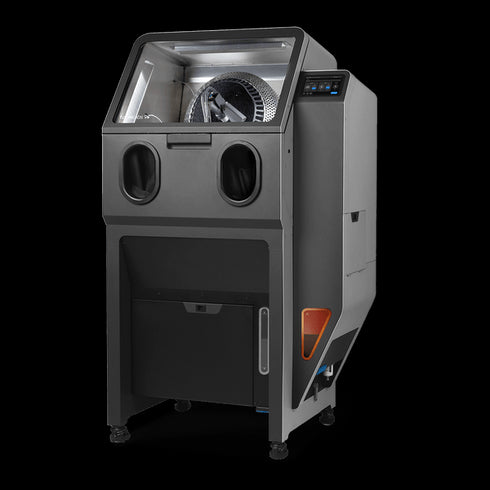

Formlabs Fuse Blast

Name: Formlabs Fuse Blast
Brand: Formlabs
SKU: FS1-FB-01-OL
Availability: InStock

Achieve professional, consistent parts that are clean to the touch faster and easier than ever before with Fuse Blast, an easy-to-use, fully automated cleaning and polishing solution for post-processing SLS 3D printed parts.

$0.00

Quantity

SKU: FS1-FB-01-OL

VENDOR: Formlabs

PRODUCT INFORMATION

Description

PRODUCT INFORMATION

Fuse Blast delivers 100% hands-off cleaning and polishing for SLS parts

Finished Parts In 15 Minutes

Cleaning routines automatically post-process an entire build chamber in as little as 15 minutes, while the passive filtering reduces media saturation and extends media life to save on overhead costs.

Consistent Results

Pre-programmed routines take out the guesswork for consistent results, while manual mode allows you to adapt to any part requirements.

Professional Parts

Deliver clean-to-the-touch parts thanks to the in-line ionizer that prevents dust and media from re-settling on your parts, or go the extra mile with the optional polishing function for a smooth, semi-gloss, and dye-ready surface finish.

Streamlined Post-Processing

Fuse Blast seamlessly integrates into the Fuse ecosystem for an automated post-processing workflow that reduces labor time by 80% and delivers finished parts in as little as 15 minutes.

Features

Fuse Blast is a fast, automated solution that delivers professional results, consistently.

Hands-off post-processing
Passive recycling for extended media life and faster processing on Sift
Pre-programmed routines
Add-on polishing upgrade (Fuse Blast Polishing System)
In-line ionizer for clean-to-the-touch parts
Dual-function blasting with automatic or manual cleaning
Fully sealed and workshop-friendly operation

Formlabs Fuse Blast Technical Specifications

Printer Compatibility	Fuse Series SLS 3D Printers Third-party powder bed fusion 3D printers
Minimum Dimensions for Convenient Access (W × D × H)	145 × 150 × 210 cm 57.4 × 59.6 × 82.6 in
Dimensions (W x D x H)	100 × 75 × 175 cm 39 × 29.6 × 68.7 in Height when open: 195cm (76.8 in)
Minimum Access Dimensions (W x D x H)	221.1 x 122.0 x 218.0 cm 87.1 x 48.0 x 85.8 in
Weight	164 kg (without blasting media) 360 lb (without blasting media)
Media Hopper Capacity	Media hopper capacity 8.3 L, equivalent to 13 kg of 200-300 µm glass media
Waste Hopper Capacity	10.6 L
Operating Environment	10–36 ºC 50–96.8 ºF Elevation up to 7500 ft / 2286 meters
Fresh Powder Hopper Capacity	10.7 kg Nylon 12 23.6 lb Nylon 12
Used Powder Hopper Capacity	9.8 kg Nylon 12 21.6 lb Nylon 12
Operating Environment	18 - 26 °C 68 - 80 °F <30% ambient humidity
Air Handling	Negatively pressurized hood with replaceable HEPA filter Independent venting system
Air Filtration	Replaceable HEPA medium
Power Requirements (with a vacuum that draws less than 6 A (230 VAC))	230 VAC, 3 A (no dedicated circuit or vacuum required)
Compressed Air Requirements	Supply at least 10 SCFM at 90 PSI / 285 SLPM at 6 bar. Regulate pressure input between 90-120 PSI / 6-8 bar. Typically achieved by a single 4 HP compressor.
Connectivity	Wi-Fi (2.4 GHz) Ethernet (1000 Mbit) USB 2.0
Ethernet Connectivity	RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T.
Wi-Fi Connectivity	Protocol: IEEE 802.11 b/g/n Frequency: 2.4 / 5.0 GHz Supported security: WPA/WPA2
USB Connectivity	USB (rev 2.0) C port with a USB A-C or C-C cable
Sound Emission	Does not exceed 76.5 dB(A)
Product Control	Interactive touchscreen, foot pedals for manual control
Included Accessories	Transfer container Control pedals ESD wrist strap 7mm socket wrench Blast orifice (3mm) Blast orifice (4mm) T-20 driver Floor mat
Tumbling Basket	450mm internal diameter (Fits a full Fuse build volume)
Internal work area (W x D x H)	71 x 55 x 67 cm 27.9 x 21.6 x 26.3 in
Accessible work area (W x D x H)	57 x 50 x 67 cm 22.4 x 19.6 x 26.4 in (basket removed)

Description

Everything you need to produce great prints: Form 4L plus the Form Cure L and the Form Wash L (2nd Gen)

Form 4L

Form 4L is a blazing-fast large-format masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. Turn your biggest ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4L ecosystem.

Form 4L’s speed is driven by Formlabs’ new Low Force Display™ Print Engine, a powerful combination of ultra-high power LEDs, collimating lenses, optical filters, and a robust liquid crystal display. Together they cure each layer of resin rapidly — regardless of part size or quantity. With tight tolerances, parts printed in every resin on Form 4L will match your design parameters, every time.
