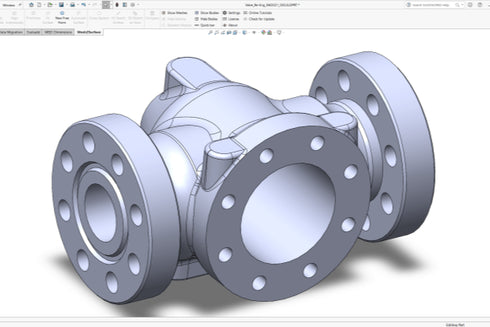

QUICKSURFACE for SOLIDWORKS

Powerful Reverse Engineering in SOLIDWORKS

Mesh2Surface is a reverse engineering add-in for SOLIDWORKS that lets you convert 3D scan meshes into CAD models. It provides efficient tools to generate surfaces and curves to help reconstruct a professional CAD model.

What is Mesh2Surface for SOLIDWORKS®?

Mesh2Surface allows the user to:

• Import large scan data effectively in SOLIDWORKS in seconds, not minutes;
• Extract reference geometries, including symmetry plane;
• Align intuitively in the right position in space, to existing CAD model or multiple scans;
• Create reference cross sections for sketching - parallel, rotational and outline;
• Fit precisely line arcs and complex shapes to reference section points
• Approximate free-form surfaces with best fit surface;
• Reverse engineering organic and free-form shapes in the most accurate way;
• Compare the CAD models against the reference data instantly with 3D colour map;
• Convert free-form organic shapes just with the hit of a button;

And do all this in your favourite CAD package - SOLIDWORKS;

Read more >
