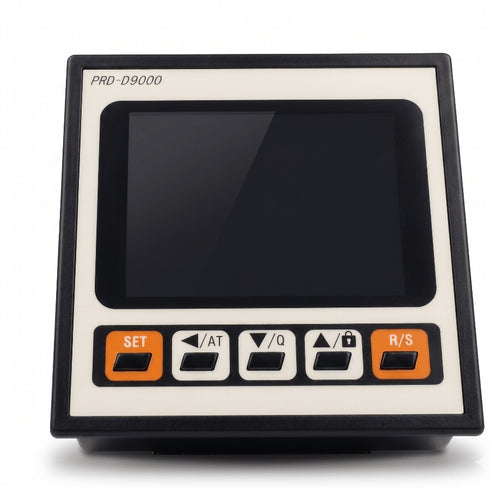

28 Segment Ramp LCD Controller For Annealing Ovens
28 Segment Ramp LCD Controller For Annealing Ovens
28 segment ramp LCD controller with RS485 and USB interfaces for FAANO Annealing ovens with LCD panel for precise low temperature operations. Range from ambient to 400C and display temperatures in either Fahrenheit or Celsius.
Specifications
|
Electrical requirements |
220-240V single phase |
|
Temperature range |
0 to 400°C |
|
Unit dimensions |
95 x 95 x 65 mm (WxHxD) |
|
Shipping dimensions |
150 x 150 x 150 mm (WxDxH) |
|
Temperature accuracy |
+/- 1°C |
|
Temperature controller resolution |
0.1°C |
|
Dwelling timer range |
0 to 9999 minutes (0 means no timing) |
|
Dwelling timer unit |
Minute or hour |
|
Built-in calibration |
Yes |
|
PID control |
Yes |
|
Temperature display mode |
Fahrenheit or Celsius |
|
Shipping weight |
0.5 KG |
|
Compatible vacuum ovens |
FAAO-013L, FAAO-026L, FAAO-040L |
Note: If you intend to use your oven at temperatures higher than 100C, please perform an Auto-Tune (see oven manual) for faster heating rate.
