Big Parts, Blazing Fast
Large prints in under 6 hours. 4.6x larger build volume than Form 4.

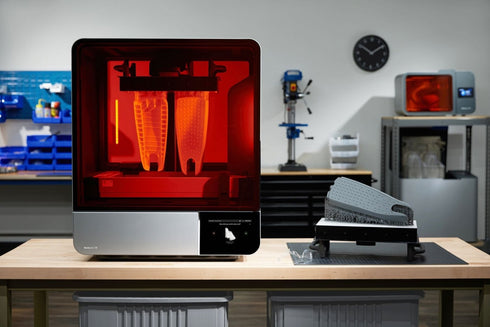

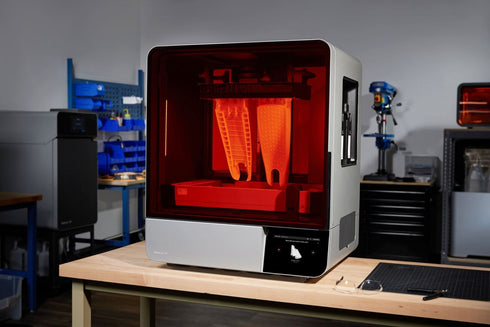

Form 4L is a blazing-fast large-format masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. Turn your biggest ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4L ecosystem.
Form 4L’s speed is driven by Formlabs’ new Low Force Display™ Print Engine, a powerful combination of ultra-high power LEDs, collimating lenses, optical filters, and a robust liquid crystal display. Together they cure each layer of resin rapidly — regardless of part size or quantity. With tight tolerances, parts printed in every resin on Form 4L will match your design parameters, every time.
Looking to print with biocompatible materials? See Form 4BL.
Printers That Just Work
So intuitive anyone can learn to print in minutes.
Go from CAD to printing in minutes with just a few clicks using our free PreForm software. Upgraded automatic and fast resin dispensing, and 5L Resin Pumping System.
Monitor your prints and manage your printers from anywhere with an integrated camera, printer diagnostic tools, and our free Dashboard software.
Easy, effective post-processing with quickrelease Build Platform Flex, Form Wash,
and Form Cure.
Tackle Any Problem
With industry-leading resins and open platform.
Leverage high-performance materials optimized for impact resistance, rigidity, flame retardancy, flexibility, and more. Non-acrylate chemistries like true silicone, ceramic, and polyurethane materials. Certified third-party materials and open mode available. Option to customize print performance for your exact part using editable and shareable print settings.
Stunning Parts
That always fits with a surface finsih that rivals injection moulding.
Backed by over a decade of industry-leading experience, Formlabs has continuously refined the reliability of their SLA printers. The Form 4L boasts an unmatched print success rate, ensuring that your projects transition smoothly from digital designs to stunning physical models.
Unmatched Reliability
Stop coming back to failed prints.
- Validated Print Settings
- Intelligent Control Systems
- Re-Engineered, Long-Lasting Consumables
- Factory Calibration
- Remote Monitoring
Form 4L Technical Specifications
| Attribute | Specification |
|---|---|
| Build volume (W x D x H) |
35.3 × 19.6 × 35.0 cm | 13.9 x 7.7 x 13.8 in |
| Layer thickness (Z resolution) |
25–200 µm | 0.001–0.008 in |
| XY resolution |
46 microns |
| Maximum print speed |
80 mm/h |
| Printer weight |
58.5 kg | 129 lb |
| Printer dimensions |
66.4 x 52.8 x 79.4 cm | 26.1 x 20.8 x 31.3 in |
| Warranty and service | One-year warranty included Paid service and extended warranty options available |
| Software compatibility |
Windows 7 and up | Mac OS X 10.12 and up |
| File types accepted |
STL, OBJ, 3MF |
| Technology | Low Force Display™ (LFD) |
Complete Your 3D Printing Experience
- Print - During printing, light selectively cures a liquid resin to create the shape of your part.
- Wash - Automated washing in an agitated bath of solvent eliminates uncured resin for a flawless surface finish.
- Cure - Exposure to heat and 405 nm light finalizes part properties by completing the chemical reaction started during printing.
Fast, Clean SLA Post-Processing
Form Wash
Form Wash and Form Wash L provide thorough cleaning with powerful agitation to ensure residual resin is completely removed. After the preset wash cycle, the parts are automatically lifted from the bath to air dry.
Form Cure
Form Cure and Form Cure L use powerful LEDs, convective heating, and validated presets to achieve optimal mechanical properties with speed and precision.
Post-curing improves your part on a molecular level. 405 nm light initiates a reaction that cross-links the individual polymers, creating an interconnected, isotropic, and 100% dense final part.
- Higher strength and stiffness
- Higher surface hardness
- Higher toughness
- Higher temperature resistance
- Better creep resistance
Form 4L Recommended Packages
| Feature / Included Item | Printer Only | Basic Package | Complete Package |
|---|---|---|---|
| Form 4L 3D Printer | ✔ | ✔ | ✔ |
| Warranty Coverage | Standard 12 Months | Standard 12 Months | 3 Year Extended Warranty |
| Resin Tank & Mixer | — | ✔ | ✔ |
| Build Platform | — | ✔ | — |
| Build Platform Flex | — | — | ✔ |
| Form 4L Finish Kit Cleaning Tools | — | ✔ | ✔ |
| Form 4L Finish Kit Wash Bucket | — | ✔ | — |
| Form Wash L (2nd Gen) | — | — | ✔ |
| Form Cure L (2nd Gen) | — | — | ✔ |
| Resin Pumping System | — | — | ✔ |
| Solvent Pump | — | — | ✔ |
| PreForm Software | ✔ | ✔ | ✔ |
| Best For... | Existing users with accessories | New users with existing wash/cure | Total ecosystem setup |
Australia’s Premier Formlabs Partner
Since 2016, Thinglab has proudly partnered with Formlabs, establishing ourselves as the largest Formlabs collaborator in Australia. Our expertise is unparalleled, with a team that not only uses but deeply understands the Formlabs printers. At Thinglab, we believe that 3D printing is about more than just specifications - it’s about hands-on experience and practical knowledge.
For tailored advice or to explore diverse material possibilities, don’t hesitate to contact the Thinglab team. We are committed to guiding you through the selection process to ensure you find the ideal materials for your specific projects.
