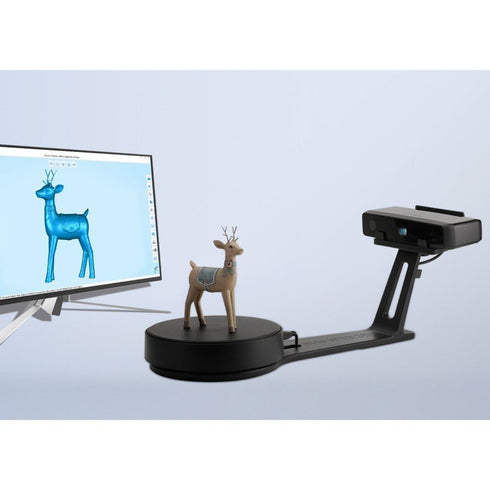

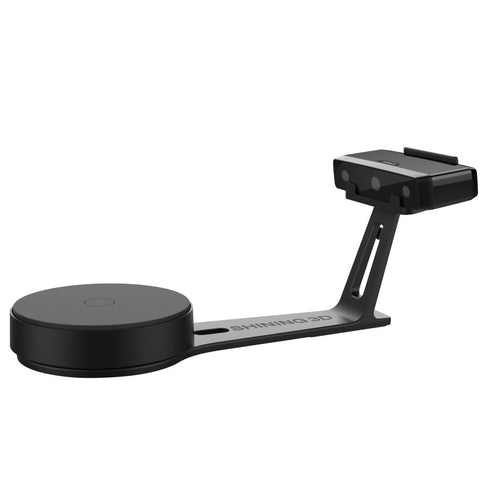

Easier Operation, Faster Scanning, User Friendliness, and Enhanced Efficiency
Time is of the essence and capturing speed is vital. The EinScan SE V2 takes less than 1 second for a single scan. For a 360-degree scan using the turntable, it will take only 45 seconds.
EinScan-SE features two scan modes for 3D scanning. Turntable mode allows you to capture objects under 200 x 200 x 200 mm with automatic rotational stitching. Free scan mode, allows you to mount the camera onto a tripod (tripod not included with scanner) and 3D scan larger objects up to 700 x 700 x 700 mm.
The reason why the EinScan SE is the choice for educators and newcomers is its ease of use and it delivers great performance even for non-technical users with no prior experience with 3D scanning. The EinScan SE is the ideal 3D scanner as you immerse yourself in the world of 3D modeling. With its innovative auto stitching (the hardest job for any 3D Scanner operator is to manually align each scan), producing watertight 3D models ready to print straight away.
Intuitive software
The clever 3D Scan software that comes with your 3D Scanner does the heaving lifting and makes it easy to use. 3D Scanning in the past has been a very complex and time-consuming procedure, but with the included software makes it easy work to capture quality 3D models.
SPECIFICATIONS
| Scan Mode | Fixed Scan with Turntable | Fixed Scan without Turntable |
| Mode of Alignment | Feature; Manual; Turntable | Feature; Manual |
| Single Shot Accuracy | ≤0.1 mm | |
| Minimum Scan Volume | 30 × 30 × 30 mm | |
| Maximum Scan Volume | 200×200×200 mm | 700×700×700 mm |
| Single Scan Range | 200×150 mm | |
| Scan Speed | Single Shot<1 s Turntable<45 s |
|
| Point Distance | 0.17 mm ~ 0.2 mm | |
| Texture | Yes | |
| File Format | OBJ, STL, ASC, PLY, 3MF | |
| Camera Resolution | 1.3 Mega Pixels | |
| Light Source | White LED | |
| Working Distance | 290 ~ 480 mm | |
| Computer Requirements (Required) | USB:1 ×USB 2.0 or 3.0; OS: Win7, 8 or 10 (64 bit); Graphic Card: Nvidia series; Graphic memory: ＞1G; CPU: Dual-core i5 or higher; Memory: ＞8G | |
| Computer Requirements (Recommended) | Graphics card: NVIDIA GTX660 or higher； Graphics memory: ＞2 G; CPU: Dual Core I5 or higher; Memory: ＞16 G | |
| Scanner Body Weight | 2.5 kg | |
| Dimension | 570×210×210 mm | |
| Power Supply | 40 w | |
| Input Voltage | DC：12 v, 3.33 A | |
| Calibration Board | Standard | |
| Turntable | Standard | |
| Load Capacity of Turntable | 5 kg | |
