FreeScan Combo with Scan software

Hybrid Light Source and Multifunctional Handheld 3D Scanner

▪ Light Source                Blue Laser + Infrared VCSEL

▪ Accuracy                      Up to 0.02 mm

▪ Weight                          620g

▪ Compact Size              193mm x 63mm x53mm

What's Included

• 1 x FreeScan Combo Hybrid Light Source 3D Scanner
• 1 x Calibration Board
• 1 x USB Dongle
• 1 x Hard Transportation Case
• 1 x Freescan Scanning Software (Perpetual License, No Ongoing Subscription Fees)
• 2nd Year warranty
• 10 x decahedron tracking dice
• 1 x Extra pack of scanning marker dots (5000 dots in total)
• 1 x Magnetic Markers (500 in total)
• 1 x Scanning turntable

Features

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.

Design

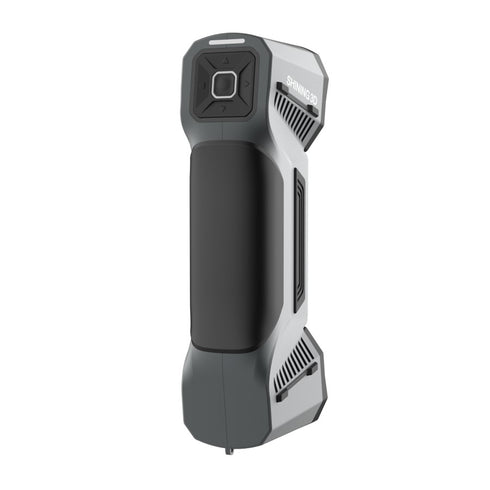

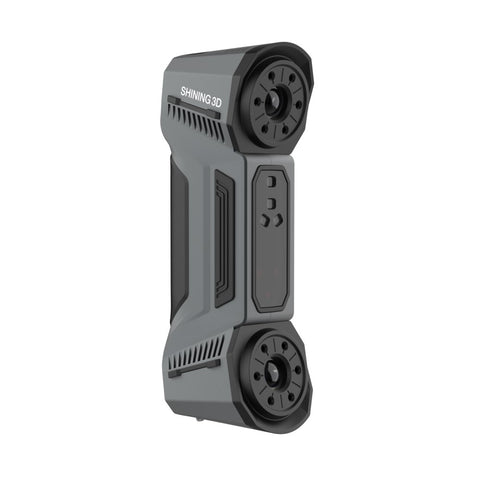

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

Scanning Modes

4 scanning modes, multiple scan choices

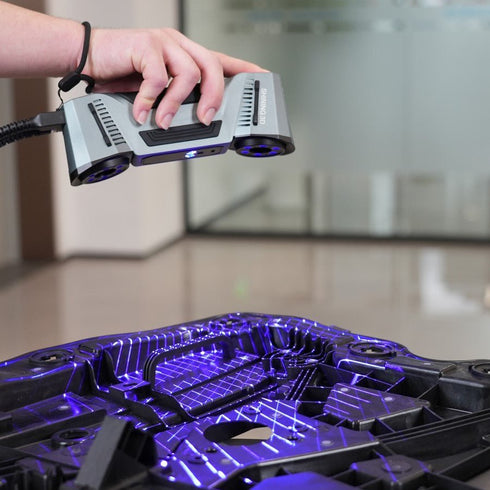

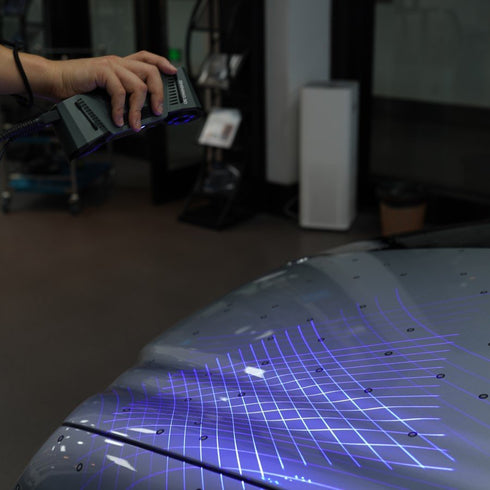

• 13 cross blue laser lines for global smooth scanning;
• 7 parallel blue laser lines for fine scanning details;
• 1 single blue laser lines to obtain deep hole data;
• Infrared light source and large FOV for more applications.

Accuracy

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm. *According to VDI-VDE 2634-3

Applications

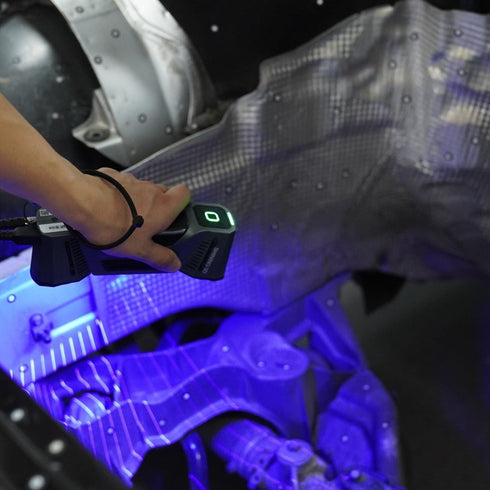

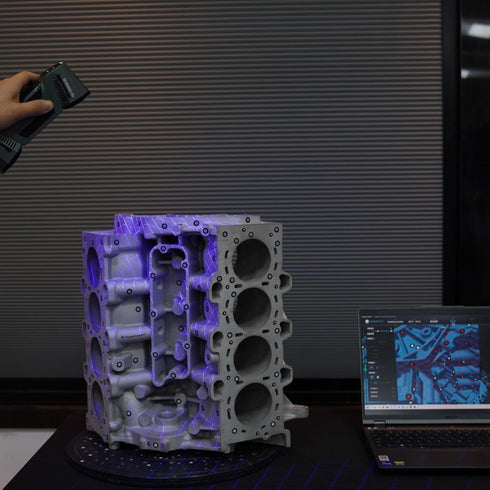

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

Specification

With its blue laser and infrared VCSEL light sources, FreeScan Combo metrology 3D scanner will help you achieve greater efficiency, productivity, and profitability. It has metrology-grade accuracy and the accuracy under the fine mode up to 0.02mm.

Scan Mode

Performance

Requirements
