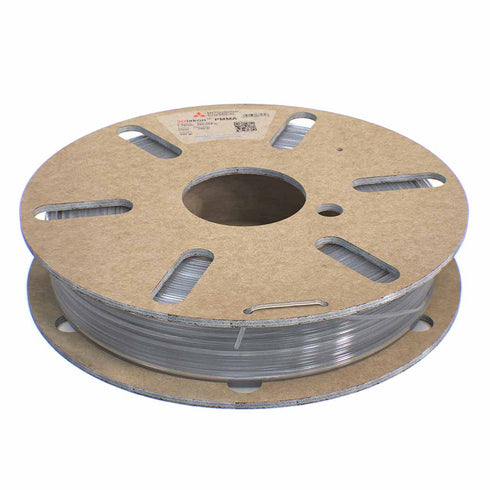

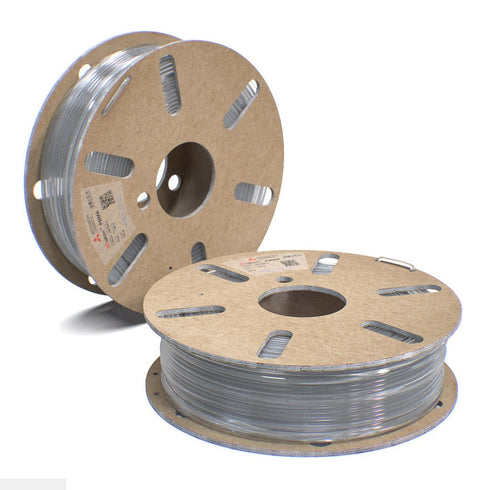

Mitsubishi Chemical 3Diakon - Clear (2.85mm 750g)

3Diakon PMMA by Mitsubishi Chemical is an extremely transparent Poly(methyl methacrylate)ÿ3D printer filament that combines¶ÿexcellent weathering and UV stability properties with great mechanical properties on impact performance and stiffness.

$97.50

SKU: DIAK-285CLEA-00750

VENDOR: Mitsubishi

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

Mitsubishi Chemical 3Diakon - Clear (2.85mm 750g)

Default Title

PRODUCT INFORMATION
PRODUCT INFORMATION

3Diakon PMMA by Mitsubishi Chemical is an extremely transparent Poly(methyl methacrylate) 3D printer filament that combines excellent weathering and UV stability properties with great mechanical properties on impact performance and stiffness. 3Diakon PMMA is a lightweight filament that is easier to 3D print than other PMMA filaments and 3D printed objects can be made transparent through post-processing by sanding and/or polishing.

Key features

  • Extremely transparent and glossy after postprocessing through sanding and polishing
  • Good UV resistance and weathering resistance
  • Strong and durable

Applications

  • Lighting applications
  • Outdoor applications
  • Optical applications
  • Architecture and design

General printing guidelines

Nozzle size: ≥ 0.4mm Layer height: ≥ 0.20mm Experience level: Intermediate
Print temp: ± 245 – 265° C Fan speed: 0% Drying: 6-12 hours at 70-80°C
Heat bed: ± 100° C Enclosure needed: Recommended *

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

*) For 3D printing large objects with 3Diakon filament it is recommended to use an enclosed 3D printer with heated chamber.

Filament length

ρ: 1.14 g/cc 50 gr coil 0.3 Kg spool 0.75 Kg spool
Ø 1.75mm ± 18.2m ± 109m ± 274m
Ø 2.85mm ± 6.9m ± 41m ± 103m

Product export information

HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands

Compliance *

This filament is compliant to below-listed directives and regulations.

  • RoHS directive 2011/65/EC
  • REACH directive 1907/2006/EC

*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
