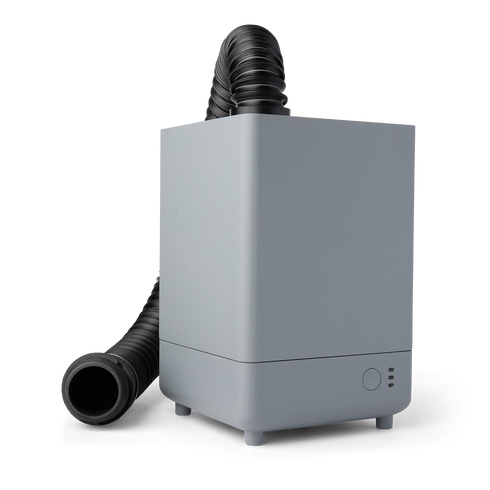

Formlabs VOC Extractor
What is the Formlabs VOC Extractor?
The Formlabs VOC Extractor is a compact, external air filtration add-on engineered to reduce volatile organic compound (VOC) levels while your 3D printer operates]. By drawing air through a multi-stage filtration system, it vents clean air back into your room, removing barriers to printing in enclosed workspaces, classrooms, and design studios.
When paired with the Form Studio 1 and Alpha Resins, the VOC Extractor enables the printer to achieve UL GREENGUARD Gold Certification, making it the first resin SLA 3D printing system certified for low chemical emissions in indoor environments. It is also fully compatible with Form 4 and Form 4B printers.
Key Features at a Glance
- Multi-Stage Carbon Filtration: Air passes through a protective pre-filter followed by two high-efficiency activated carbon HEPA filters.
- Three Adjustable Flow Settings: Choose between 7, 12, or 19 CFM airflow levels to match your material setup and hose routing.
- UL GREENGUARD Gold Testing Standard: Built to meet strict low-emission standards, using the middle 12 CFM setting for certified GREENGUARD testing.
- Long-Lasting Filters: Carbon filters last approximately 330 hours of active print time and swap out in seconds.
- Cross-Printer Compatibility: Connects directly to Form Studio 1, Form 4, and Form 4B printers.
Why Choose the Formlabs VOC Extractor?
Ensure a safe, comfortable, and low-emission printing environment in any office, classroom, or production lab.
Protects Indoor Air Quality
Resin chemical emissions contain sensitisers that can cause allergies over prolonged indoor exposure. The extractor actively filters these compounds for safer printing.
Unlocks GREENGUARD Certification
Key accessory required to achieve independently tested UL GREENGUARD Gold low-emission certification on Form Studio 1 with Alpha Resins.
Removes Odors & Unseen VOCs
While all odors are VOCs, not all VOCs produce noticeable smells. Active carbon filtration removes both detectable odors and odorless compounds.
Quick & Simple Maintenance
Filters replace in seconds without tools. Easily maintain air quality using customer-replaceable kit packs containing pre-filters and carbon media.
How It Works: Technology & Maintenance
The Formlabs VOC Extractor attaches directly to the dedicated accessory port on compatible printers. When a print job begins, the unit automatically powers on, pulling chamber air through its multi-layer filter stack and exhausting purified air back into the room.
Filtration Stack & Flow Control:
- Pre-Filter Layer: Traps airborne dust and fine particles to extend the operating life of the carbon elements.
- Dual Activated Carbon HEPA Filters: Adsorbs volatile organic compounds, vapors, and sensitisers generated during photopolymerisation.
- Three Fan Settings: Adjustable between 7 CFM, 12 CFM, and 19 CFM. The 12 CFM setting is the standardised speed used for official UL GREENGUARD Gold emissions testing.
Filter Lifespan & Replacement Kits:
Each set of activated carbon HEPA filters provides approximately 330 hours of active print time. Maintenance is straightforward with available replacement kits:
- VOC Extractor Replacement Kit: Includes 2 replacement activated carbon HEPA filters and 4 spare pre-filters.
- Carbon Replacement Protocol: Always replace both carbon filters simultaneously to maintain balanced airflow and consistent absorption.
- Pre-Filter Protocol: Swap out the outer pre-filter whenever visual inspection shows clogging or reduced performance.
Technical Specifications
| Product Name | Formlabs VOC Extractor |
|---|---|
| Filter Technology | 1x Pre-filter + 2x Activated Carbon HEPA Filters |
| Filter Lifespan | ~330 Print Hours (Replaceable in seconds) |
| Airflow Fan Speeds | 3 Preset Speeds: 7 CFM, 12 CFM (Testing speed), and 19 CFM |
| Environmental Certification | Enables UL GREENGUARD Gold Certification (Form Studio 1 + Alpha Resins) |
| Printer Compatibility | Form Studio 1, Form 4, Form 4B (Not compatible with Form 4L/4BL due to port size) |
| Replacement Consumable Kit | VOC Extractor Replacement Kit |
