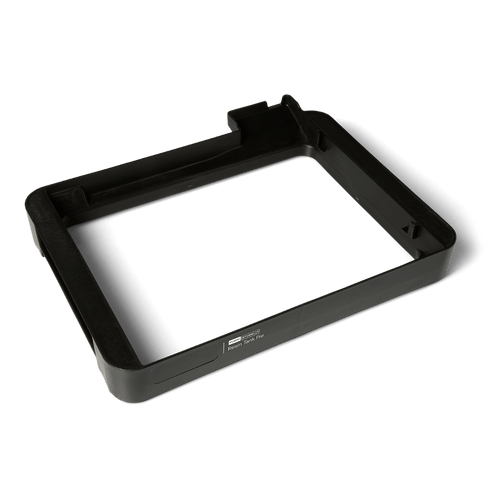

Formlabs Form Studio 1 Resin Tank Pro
What is the Form Studio 1 Resin Tank Pro?
The Formlabs Form Studio 1 Resin Tank Pro is a specialised, chemically resistant resin vat engineered to broaden the material capabilities of the Form Studio 1 desktop 3D printer. While sharing the robust structural frame of the standard tank, the Tank Pro features an upgraded inner film formulated to handle aggressive chemical compositions.
This tank is strictly required for printing with Tough 1500 Resin V2 and is mandatory for running any third-party 405 nm resin using the printer's included Open Material Mode. Each Tank Pro includes a reusable, light-blocking lid that simplifies tank rotation and protects stored resins from ambient exposure.
Key Features at a Glance
- Broad Chemical Compatibility: Specially formulated film withstands aggressive engineering resins and third-party formulations.
- Required for Open Material Mode: Essential hardware component to print with any 405 nm third-party resin without license fees.
- Tough 1500 V2 Ready: Formulated specifically to support Tough 1500 Resin V2 print cycles on Form Studio 1.
- 75,000+ Layer Durability: Engineered to maintain reliable peel characteristics across at least 75,000 layers (~190 standard prints).

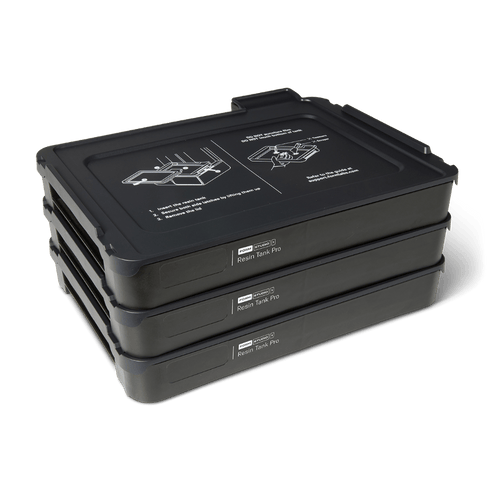

- Stackable Storage Lid Included: Features a fitted cover for clean material storage and protection against ambient light.
Why Choose the Form Studio 1 Resin Tank Pro?
Unlock third-party resin compatibility and tough engineering materials on your desktop SLA system.
Open Material Freedom
Mandatory vessel for printing with 3rd-party 405 nm resins in Open Material Mode without chemical film breakdown.
Engineering Resins Supported
Enables printing with Tough 1500 Resin V2 for robust, resilient prototypes with high elongation and impact resistance.
High Layer Lifespan
Delivers consistent performance across 75,000+ layers, significantly outlasting standard consumer SLA tanks.
Neat Workbench Organisation
Store customised open resins safely inside covered, stackable tanks to quickly transition between experimental projects.
How It Works: Technology & Operational Highlights
The Form Studio 1 Resin Tank Pro employs a specialised chemical-resistant layer engineered to maintain structural integrity when exposed to solvent-heavy or third-party photopolymer formulations.
Speed & Compatibility Considerations:
Because the Resin Tank Pro prioritises broad chemical compatibility across diverse resin chemistries, print speeds are automatically adjusted by PreForm software to ensure gentle release forces without a mechanical mixer arm.
Pro Tip: For high-volume production or heavy workloads using Tough or filled engineering resins, the industrial Form 4 features a dedicated mixer arm and higher output speeds.
Mixing Routine & Scraper Maintenance:
- Build Platform Mix Routine: Form Studio 1 automatically moves the build platform through the resin tank prior to starting prints to distribute heat and homogenise liquid resin.
- 3-Day Idle Maintenance: If resin remains in the tank unused for 3 consecutive days, the UI prompts you to manually stir the material using the soft plastic scraper from your accessories box.
- Non-Replaceable Film: The inner film is an integrated factory component engineered for extended chemical resistance and cannot be replaced separately.
Durability Comparison (Layer Lifespan):
Formlabs resin tanks lead the desktop resin industry in rated layer output.
Technical Specifications
| Product Name | Formlabs Form Studio 1 Resin Tank Pro |
|---|---|
| Printer Compatibility | Formlabs Form Studio 1 |
| Required For | Tough 1500 Resin V2 & Open Material Mode (3rd party 405 nm resins) |
| General Compatibility | Alpha Resins, Flexible 80A V2, True Cast Resin, and open 405 nm formulations |
| Layer Lifespan | 75,000+ layers (~190 average 39 mm models at 100 µm layer height) |
| Film Replacement | Non-replaceable (integrated chemically resistant film assembly) |
| Included Accessories | Reusable UV-blocking stackable lid |
| Mixing System | Automated build platform motion routine + manual scraper stirring after 3 days idle |
