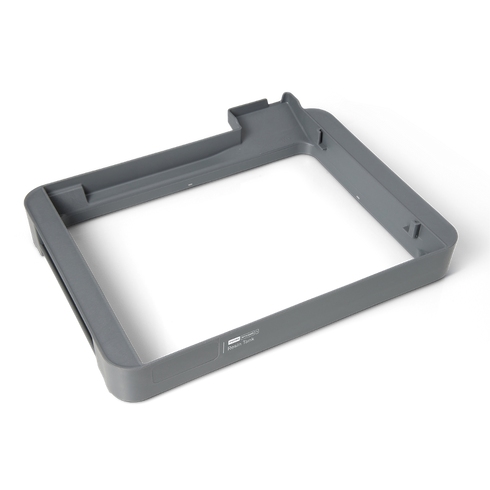

Formlabs Form Studio 1 Resin Tank
What is the Form Studio 1 Resin Tank?
The Formlabs Form Studio 1 Resin Tank is a durable, flexible resin vat engineered specifically for high-speed SLA 3D printing and fine feature resolution. It serves as the standard printing vessel for the Form Studio 1 ecosystem, providing optimal clarity and smooth layer release for daily prototyping and detail-critical modeling.
Formulated for targeted chemical compatibility, this resin tank is optimised to run Formlabs Alpha Resins (Grey, White, Black, Clear, Fast, Model), Flexible 80A Resin V2, and True Cast Resin. Each tank ships complete with a durable, reusable lid that allows users to easily stack, store, and shield light-sensitive resins between print jobs.
Key Features at a Glance
- Optimised for Speed & Precision: Custom-engineered film structure supports fast print speeds up to 130 mm/h and sharp 35 µm detail.
- 75,000+ Layer Lifespan: Built to deliver consistent print performance across at least 75,000 layers (approx. 190 average 39 mm tall models).
- Proprietary Non-Stick Film: Reduces release forces and eliminates the need for an active mechanical mixer arm.

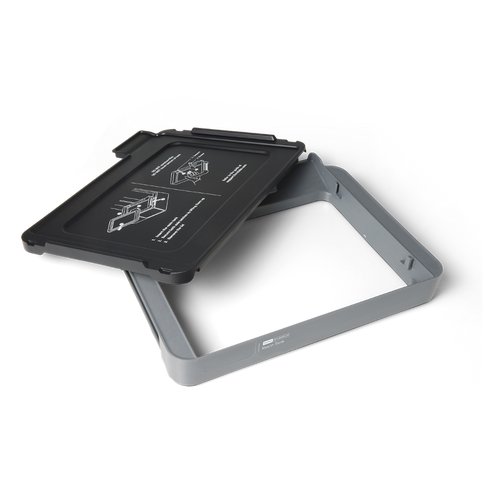

- Stackable Storage Lid: Includes a fitted reusable lid to store resin safely inside the tank and protect against ambient light exposure.
- Alpha Resin Compatibility: Fully validated for Alpha Resins, Flexible 80A V2, and True Cast Resin.
Why Choose the Form Studio 1 Resin Tank?
Achieve fast turnarounds, crisp feature detail, and long-term consumable reliability in your daily desktop SLA setup.
Maximum Print Speed
Engineered with a low-friction release layer that enables rapid peel cycles, letting you finish parts in under two hours.
Exceptional Tank Longevity
Outlasts typical desktop resin tanks by delivering over 75,000 layers of reliable print output under standard maintenance.
Easy Material Swaps
Keep separate resin tanks for different colors or formulations to swap materials in seconds without cleaning or draining.
Clean Stackable Storage

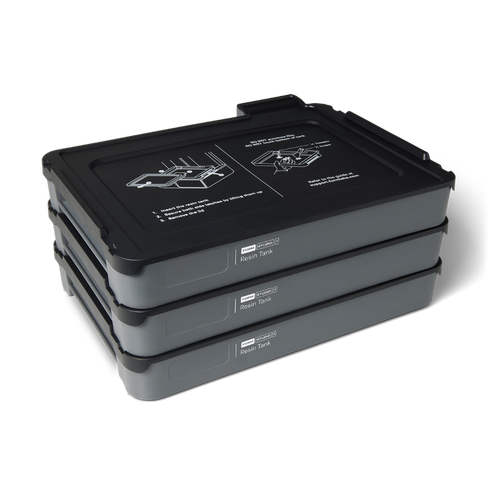

The included reusable cover seals off dust, prevents resin evaporation, and allows multiple tanks to stack neatly on workbench shelves.
How It Works: Technology & Resin Management
The Form Studio 1 Resin Tank utilises a flexible, proprietary film designed to minimise adhesion forces during layer exposure. Because resin resists sticking to the tank surface, the printer does not require a complex wiper or mechanical mixer arm during normal operation.
Automated Thermal & Resin Mixing Routine:
To maintain uniform fluid temperature and prevent settling during printing, the Form Studio 1 executes a smart build platform motion routine. By moving the build platform through the tank, the system equalises resin temperature and maintains material homogeneity prior to exposure.
Maintenance & Handling Best Practices:
- Idle Resin Warning: If the printer sits idle for more than three days, the onboard touchscreen interface prompts you to manually stir the resin using the soft plastic scraper included in your accessories box.
- Proprietary Tank Film: The bottom tank film is an integrated factory component engineered for extreme durability and is non-replaceable.
- Material Guidance: This standard tank is engineered for Alpha Resins, Flex 80A V2, and True Cast Resin. For Tough 1500 V2 or Open Material Mode, use the Form Studio 1 Resin Tank Pro.
Durability Comparison (Layer Lifespan):
Formlabs resin tanks lead the desktop resin industry in rated layer output.
Technical Specifications
| Product Name | Formlabs Form Studio 1 Resin Tank |
|---|---|
| Printer Compatibility | Formlabs Form Studio 1 |
| Compatible Materials | Alpha Resins (Grey, White, Black, Clear, Fast, Model), Flexible 80A Resin V2, True Cast Resin |
| Incompatible Materials | Tough 1500 Resin V2, 3rd party Open Material Mode resins (requires Resin Tank Pro) |
| Layer Lifespan | 75,000+ layers (~190 average 39 mm models at 100 µm layer height) |
| Film Replacement | Non-replaceable (integrated proprietary film assembly) |
| Included Accessories | Reusable UV-blocking stackable lid |
| Mixing System | Automated build platform motion routine + manual scraper stirring after 3 days idle |
