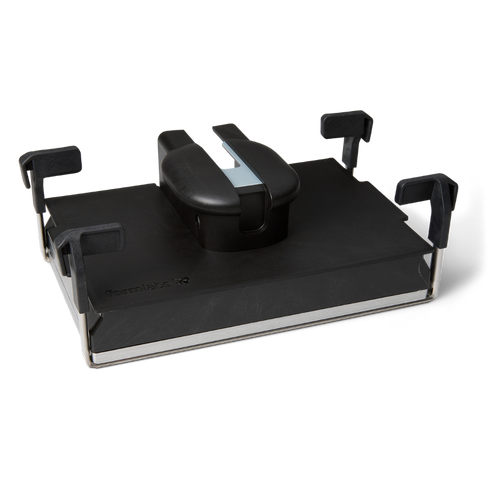

Formlabs Form Studio 1 Build Platform Flex
What is the Form Studio 1 Build Platform Flex?
The Formlabs Form Studio 1 Build Platform Flex is an advanced build platform upgrade equipped with Formlabs' patented Quick Release Technology. By allowing the flexible printing face to articulate, finished parts pop cleanly off the platform in seconds with zero tools required.
Recommended for almost all daily prints, the Build Platform Flex completely removes the struggle of scraping parts off rigid metal. This eliminates the risk of chipping delicate edges, gouging fine surface details, or causing accidental personal injury from scraper slips. Like the standard platform, it features a lower-profile design tailored specifically to support the Form Studio 1’s tall 235 mm build volume.
Key Features at a Glance
- Quick Release Technology: Articulating flexible face releases parts cleanly in seconds without hand scrapers or prying tools.
- Zero Risk of Part Damage: Protect fragile walls, razor-sharp details, and thin features from mechanical scraper damage.
- Streamlined Lab Safety: Tool-free part removal removes the hazard of sharp scrapers slipping during high-force part removal.
- Full 235 mm Z-Height Capacity: Custom slimline frame supports the Form Studio 1’s tall vertical printing envelope.
- Broad Rigid Resin Support: Compatible with Alpha Resins, Tough 1500 V2, True Cast Resin, and rigid open-platform resins.
Why Choose the Build Platform Flex?
Upgrade part removal speed, protect fragile prints, and establish an effortless benchtop post-processing workflow.
Tool-Free Part Removal
Simply actuate the quick-release handles to flex the print surface. Finished parts instantly release with minimal effort.
Protect Delicate Geometries
Prying rigid parts with metal blades often breaks thin walls or chips small details. Flexing the surface detaches parts cleanly without mechanical impact.
Faster Turnaround Times
Clear complete batches of figurines, prototypes, or jewelry models in seconds rather than spending minutes scraping individual parts.
Safer Studio Environment
Eliminating sharp metal scraping blades creates a significantly safer post-processing environment for offices, design studios, and classrooms.
How It Works: Technology & Material Guidelines
The Form Studio 1 Build Platform Flex incorporates an integrated spring-steel printing surface held in tension. When the release handles are shifted, the plate flexes smoothly across its surface plane, breaking the mechanical adhesion bond between the raft and the platform without bending or distorting your printed model.
Material Compatibility: When NOT to Use Build Platform Flex
While Build Platform Flex is strongly recommended for almost all rigid, tough, and casting resins, it is not suitable for elastomeric or flexible materials:
- Flexible Materials (e.g., Flexible 80A Resin V2): Elastomeric prints will simply flex along with the plate surface rather than popping free. Always use the standard solid aluminum Form Studio 1 Build Platform when running flexible formulations.
- Ideal For: Alpha Grey, White, Black, Clear, Fast, Model, Tough 1500 V2, True Cast Resin, and rigid 3rd-party 405 nm resins.
Hardware Geometry & Wash Compatibility Notes:
- Low Profile Form Factor: Engineered thinner than Form 4 platforms to help the Form Studio 1 achieve a tall 235 mm vertical build height.
- Form 4 Incompatibility: The seating latch is specific to Form Studio 1; this platform will not fit into a Form 4, and Form 4 platforms will not fit into Form Studio 1.
- Form Wash (Gen 2) Use: Directly compatible with the Form Studio Wash+Cure. If using a standalone Form Wash Gen 2, a dedicated arm adapter is required so the flex arm sits cleanly in the wash basket bracket.
Quick 3-Step Removal Workflow:
- Wash: Transfer the platform directly from the printer to your wash unit.
- Flex: Set the platform on your workbench and squeeze the release handles. The surface flexes, causing your parts to peel off instantly.
- Reset: Release the handles to return the surface to its calibrated flat position, wipe down, and reinstall.
Technical Specifications
| Product Name | Formlabs Form Studio 1 Build Platform Flex |
|---|---|
| Release Mechanism | Quick Release Technology (Flexible Surface Mechanism) |
| Printer Compatibility | Formlabs Form Studio 1 exclusively |
| Form 4 Compatibility | Not compatible (different latch seat geometry and profile height) |
| Maximum Vertical Build Height | 235 mm |
| Recommended Materials | Alpha Resins (Grey, White, Black, Clear, Fast, Model), Tough 1500 V2, True Cast, rigid 405 nm resins |
| Incompatible Material Types | Flexible and elastomeric resins (e.g. Flexible 80A Resin V2; use standard aluminum platform instead) |
| Part Removal Tool Required | None (tool-free release) |
| Wash Station Compatibility | Mounts directly to Form Studio Wash+Cure; requires arm adapter for Form Wash Gen 2 |
