Formlabs Form Studio 1 Build Platform
What is the Form Studio 1 Build Platform?
The Formlabs Form Studio 1 Build Platform is the standard, rigid aluminum build surface engineered specifically for the Form Studio 1 resin 3D printer. Designed to deliver uncompromising rigidity and optimal first-layer adhesion, this platform ensures consistent print accuracy across your entire build area.
To maximise vertical build volume while keeping the machine compact, the Form Studio 1 Build Platform features an updated low-profile form factor that unlocks a tall 235 mm print height. Maintaining a spare build platform in your workshop allows you to seamlessly rotate plates, launching a new job immediately while washing, curing, or removing parts from the previous run.
Key Features at a Glance

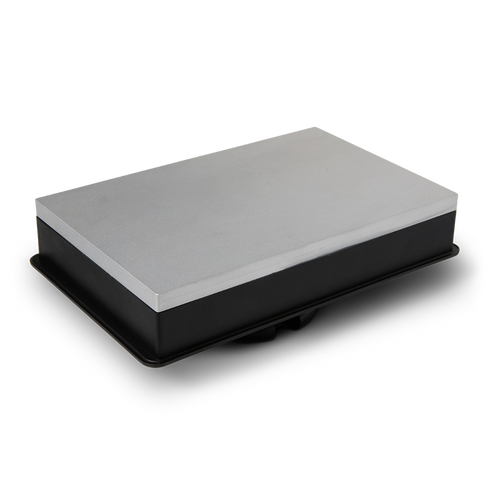

- Durable Machined Aluminum: Rigid, flat metal surface provides reliable first-layer bonding and resists long-term wear.
- Universal Resin Compatibility: Fully compatible with all Form Studio 1 materials, including Alpha Resins, Tough 1500 V2, True Cast, and flexible resins.
- Essential for Flexible Resins: The required build surface for printing elastomeric resins like Flexible 80A Resin V2.
- Expanded 235 mm Build Height: Thinner, low-profile design accommodates taller parts compared to previous-generation platforms.
- Continuous Printing Workflow: Eliminate machine idle time by swapping plates between successive print jobs.
Why Choose the Form Studio 1 Build Platform?
Optimise printer utilisation and maintain continuous production in your rapid prototyping workshop.
Zero Workflow Downtime
Don't wait for post-processing to finish. Pop a spare platform directly into the printer to keep your Form Studio 1 producing back-to-back jobs.
Full Elastomer Support
Unlike flexible build plates, this solid aluminum platform provides the firm baseline required to properly scrape and detach flexible resins such as Flexible 80A V2.
Maximised Build Envelope
Engineered with a slimmer profile that works alongside the updated resin tank to deliver a full 235 mm vertical build height.
Rugged Durability
Constructed from solid aluminum to withstand daily scraper use, chemical solvent washing, and repetitive thermal cycles.
How It Works: Technology & Compatibility

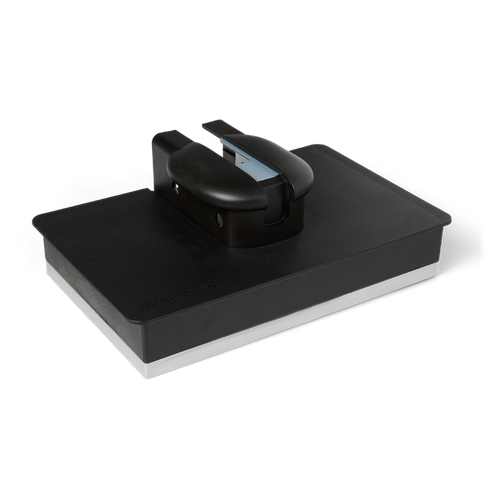

The Form Studio 1 Build Platform mounts directly onto the printer's Z-axis staging carriage using Formlabs' intuitive quick-locking latch mechanism. Its calibrated flat face provides reliable bonding for base layers and touchpoint foundation rafts.
Why is it Thinner and Lower Profile?
Formlabs designed the Form Studio 1 to offer a significantly more compact benchtop footprint while increasing vertical print volume over earlier platforms (up to 235 mm compared to 210 mm on Form 4). Shrinking the vertical profile of the build platform and resin tank made it possible to expand total Z-height within a smaller chassis.
Form 4 Compatibility Notice:
While the latching lever concept looks identical to the Form 4, the Form Studio 1 Build Platform is NOT backward-compatible with Form 4 or Form 4B. The latch receiver geometry and alignment points differ, meaning a Form Studio 1 build platform will not seat into a Form 4 carriage, and a Form 4 platform cannot be installed on a Form Studio 1.
Recommended Part Removal Workflow:
- Unlatch & Wash: Release the cam latch, remove the platform, and place it directly into the Form Studio Wash+Cure basin.
- Swap Platform: Lock a clean spare build platform into your Form Studio 1 to start your next scheduled print immediately.
- Remove Parts: Using the scraper and removal tools included in your Accessories Box, gently pry printed parts from the aluminum face along the chamfered raft edge.
- Inspect & Reuse: Wipe the aluminum surface clean with IPA or Resin Wash Solution to ensure no cured residue remains before the next run.
Technical Specifications
| Product Name | Formlabs Form Studio 1 Build Platform |
|---|---|
| Printer Compatibility | Formlabs Form Studio 1 exclusively |
| Form 4 Compatibility | Not compatible (different latch seat geometry and profile height) |
| Print Surface Material | Precision-machined rigid aluminum |
| Maximum Vertical Build Height | 235 mm |
| Resin Compatibility | All Form Studio 1 resins (Alpha Resins, Tough 1500 V2, True Cast, Flexible 80A V2, and 405 nm Open Material Mode) |
| Elastomeric Resin Suitability | Recommended and required for flexible resins (e.g. Flexible 80A Resin V2) |
| Part Removal Method | Manual removal tool / scraper |
| Wash Station Compatibility | Directly mounts to Form Studio Wash+Cure; compatible with Form Wash Gen 2 using arm adapter |
