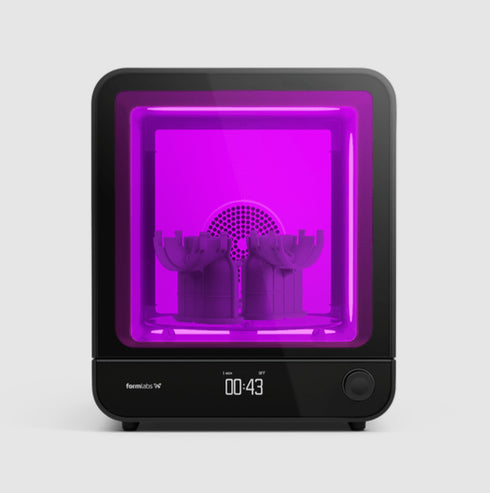

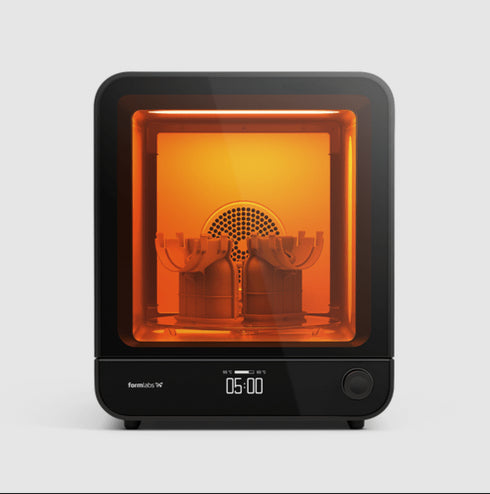

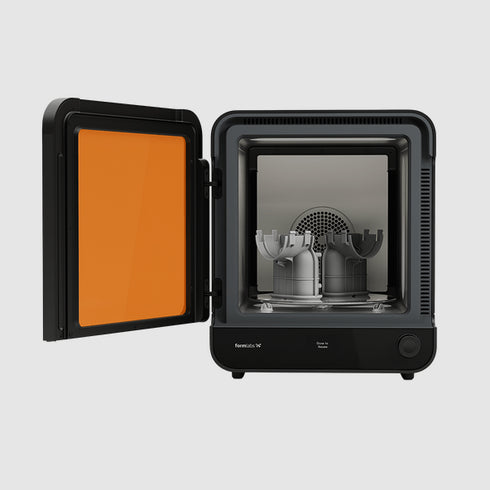

Formlabs Form Cure (2nd Generation)

Form Cure V2: Precision Post-Curing for Unprecedented Performance

The Form Cure (2nd Generation) is engineered to deliver the fastest, most consistent post-curing process yet, unlocking the true potential of your Formlabs 3D prints. By precisely combining calibrated heat and powerful 405 nm light, the Form Cure V2 completes the material's chemical reaction started during printing, transforming your green parts into final, high-performance components.

Speed and Power Upgraded

Specifically optimized for the high-speed output of the Form 4/4B ecosystem, the Form Cure V2 drastically reduces your workflow time:

• Lightning Fast Cycles: Post-cure most Form 4/4B prints in as little as 60 seconds.
• Enhanced UV Power: Features 4x more UV power than the previous generation, ensuring comprehensive curing across the entire part.
• Rapid Heating: Achieve optimal curing temperatures faster with 5x faster heat-up times.
• Increased Capacity: Designed to fit any part on the Form 4, enabling curing of parts up to 200 x 125 x 245 mm on a 235 mm turntable.

Unlock Peak Material Properties

Proper post-curing is critical for maximizing mechanical performance. Using validated presets, the Form Cure V2 ensures your parts achieve:

• Enhanced Strength and Toughness
• Superior Heat and Creep Resistance (resistance to long-term deformation)
• A Harder, Cleaner Surface (less tacky finish)

Validated and Versatile

Simply select from a library of 45+ validated Formlabs material presets to instantly begin the optimized curing cycle. For advanced users and custom applications, the machine also allows for custom adjustment of time and temperature to meet specific property requirements.

Form Cure V2: Technical Specifications

• UV Light Source: 48x multi-directional LEDs delivering uniform irradiance of 14.5 mW/cm²
• Nearly Instant Heat Up: 60 °C in 60 seconds and a maximum temperature of 100 °C.
• Blazing Fast Curing:
  • General Purpose Resins in 60 seconds
  • Engineering & Biocompatible Resins in 3-15 minutes
• Chamber Volume: Parts up to 200 x 125 x 245 mm on a 235 mm turntable.
• Material Compatibility: Pre-validated settings for 45+ Formlabs materials.
• User Control: Offers validated presets and allows for custom time and temperature settings.
• LED Power:  150 W
• LED Radiant: 50 W
• LED Wavelenght: 405nm
• Power Requirment: Input (EU) 220–240 V 50–60 Hz, 8 A
• Unit Weight and Dimensions: 33.7 × 40.4 × 37.2 cm, 12.1Kg
• Printer Compatibility:
  • Form 4/4B
  • Form 4L/4BL (smaller printed parts only)
  • Form 3/3B
  • Form 3+/3B+
  • Form 3L/3BL (smaller printed parts only)
  • Form 2
