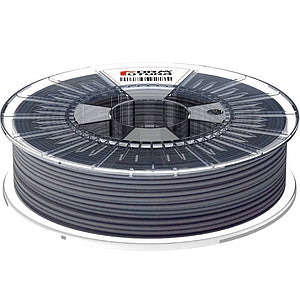

Formfutura TitanX - Grey (2.85mm 750 gram)

Formfutura TitanX - Grey (2.85mm 750 gram)

Zoom

Out stock

Formfutura TitanX - Grey (2.85mm 750 gram)

Name: Formfutura TitanX - Grey (2.85mm 750 gram)
Brand: FormFutura
SKU: TITX-285GREY-00750
Price: 60.0 AUD
Availability: InStock

TitanX is a modified ABS-based 3D printer filament with greatly improved mechanical properties and printability. TitanX is the next generation ABS that 3D prints with high precision and zero warping.

$60.00

SKU: TITX-285GREY-00750

VENDOR: FormFutura

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

PRODUCT INFORMATION

TitanX is a high-end engineering filament with ABS (acrylonitrile butadiene styrene) as the main component. The formulation of TitanX is enhanced with added polymers, binding agents and impact modifiers resulting in an engineering filament that combines exceptional mechanical properties with optimized interlayer adhesion and virtually no warping. TitanX is used by industries worldwide for creating functional prototypes and end-use parts.

Key features

Strongly improved mechanical properties
>65% more impact resistant than regular ABS
Minimal warping, excellent interlayer adhesion, and seamless build plate adhesion
Precise 3D printing with remarkable fine detail
Vicat softening temperature of 97˚C
Compatible with Helios Support for complex multi-extrusion 3D printing
Nearly odorless processing and no unpleasant styrene smell when being 3D printed

Applications

Functional prototyping
End-use parts
Fit testing
Engineering parts
Short-run manufacturing

General printing guidelines *

Nozzle size: ≥ 0.15mm	Layer height: ≥ 0.1mm	Experience level: Beginner
Print temp: ± 240 - 265° C	Fan speed: 0-30%
Heat bed: ± 70 - 100° C	Enclosure needed: Recommended

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There is a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

Strong adhesion

As TitanX is an engineering-grade material, it is recommended to use an adhesive on your build plate as a protective layer.

Filament length

ρ: 1.10 g/cc	50 gr coil	0.75 Kg spool	2.3 Kg spool	4.5 Kg spool	8 Kg spool
Ø 1.75mm	± 18.9m	± 283m	± 869m	± 1701m	± 3024m
Ø 2.85mm	± 7.1m	± 107m	± 328m	± 641m	± 1140m

Product export information

HS Code: 39169090

Description: Monofilament

Country of origin: the Netherlands

Compliance *

This filament is compliant with the below-listed directives and regulations.

RoHS directive 2011/65/EC
REACH directive 1907/2006/EC

*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
