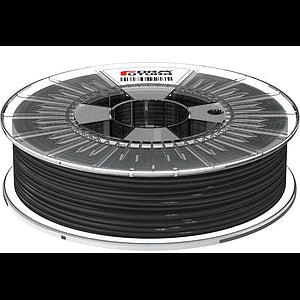

Formfutura TitanX - Black (1.75mm 4500 gram)
Pickup currently unavailable at 7A Kent Street, Yarraville, VIC
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
03 9687 8638
TitanX is a modified ABS-based 3D printer filament with greatly improved mechanical properties and printability. TitanX is the next generation ABS that 3D prints with high precision and zero warping.
TitanX is a high-end engineering filament with ABS (acrylonitrile butadiene styrene) as the main component. The formulation of TitanX is enhanced with added polymers, binding agents and impact modifiers resulting in an engineering filament that combines exceptional mechanical properties with optimized interlayer adhesion and virtually no warping.
TitanX is used by industries worldwide for creating functional prototypes and end-use parts.
- Strongly improved mechanical properties
- >65% more impact resistant than regular ABS
- Minimal warping, excellent interlayer adhesion, and seamless build plate adhesion
- Precise 3D printing with remarkable fine detail
- Vicat softening temperature of 97˚C
- Compatible with Helios Support for complex multi-extrusion 3D printing
- Nearly odorless processing and no unpleasant styrene smell when being 3D printed
- Functional prototyping
- End-use parts
- Fit testing
- Engineering parts
- Short-run manufacturing
General printing guidelines *
|Nozzle size: ≥ 0.15mm||Layer height: ≥ 0.1mm||Experience level: Beginner|
|Print temp: ± 240 - 265°C||Fan speed: 0-30%|
|Heat bed: ± 70 - 100°C||Enclosure needed: Recommended|
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There is a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.
As TitanX is an engineering-grade material, it is recommended to use an adhesive on your build plate as a protective layer.
|ρ: 1.10 g/cc||50 gr coil||0.75 Kg spool||2.3 Kg spool||4.5 Kg spool||8 Kg spool|
|Ø 1.75mm||± 18.9m||± 283m||± 869m||± 1701m||± 3024m|
|Ø 2.85mm||± 7.1m||± 107m||± 328m||± 641m||± 1140m|
Product export information
|HS Code: 39169090||Description: Monofilament||Country of origin: the Netherlands|
This filament is compliant with the below-listed directives and regulations.
- RoHS directive 2011/65/EC
- REACH directive 1907/2006/EC
*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
