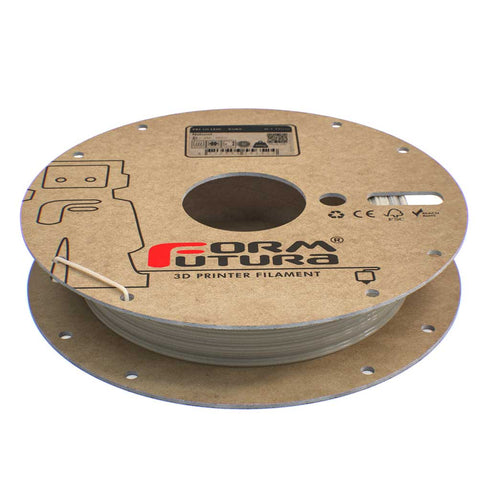

Formfutura PEI ULTEM 9085 (1.75mm 500 gram)

FormFutura PEI ULTEM 9085 is an amorphous ultra-performance PEI (Polyether Imide) 3D printer filament using ULTEM 9085 resin.


SKU: PEI9-175NTRL-00500

VENDOR: FormFutura

Pickup available at 7A Kent Street, Yarraville, VIC

Usually ready in 4 hours

Formfutura PEI ULTEM 9085 (1.75mm 500 gram)

Default Title


FormFutura PEI ULTEM 9085 is an amorphous ultra-performance PEI (Polyether Imide) 3D printer filament using ULTEM 9085 resin. PEI ULTEM 9085 combines excellent thermal properties, exceptional dimensional stability, inherent flame retardancy and good chemical resistance into a high performance 3D printing filament. PEI ULTEM 9085 has a glass transition temperature of 186°C.

FormFutura PEI ULTEM 9085 is a flame retardant 3D printing filament with low smoke evolution and low smoke toxicity, which meets UL 94 V-0 and 5VA ratings. PEI ULTEM 9085 filament exhibits excellent layer bonding properties enabling one to 3D print parts with an excellent dimensional stability and highly reproducible part-to-part dimensions.

Key features

  • Glass transition temperature of 186°C
  • Excellent dimensional stability
  • Long-term hydrolytic stability
  • Excellent mechanical properties
  • Flame retardant with UL 94 V-0 and 5VA ratings
  • Low smoke evolution and low smoke toxicity
  • Good chemical resistance properties



  • Electrical applications
  • Chemically-resistant parts
  • Durable parts
  • Aerospace applications
  • Automotive


General printing guidelines *

Nozzle size: ≥ 0.4mm Layer height: ≥ 0.10mm Experience level: Expert
Print temp: ± 350 – 390° C Fan speed: 0 – 25% Drying: +4 hours at max.110°C
Heat bed: ≥ 120° C Enclosure needed: 90°C heated chamber
Adhesion: EasyFix Nr. VII

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

Filament length

ρ: 1.34 g/cc 0.2 Kg spool 0.5 Kg spool
Ø 1.75mm ± 62m ± 155m
Ø 2.85mm ± 23m ± 58m


Product export information

HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands


Compliance *

This filament is compliant to below-listed directives and regulations.

  • RoHS directive 2011/65/EC
  • REACH directive 1907/2006/EC

*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
