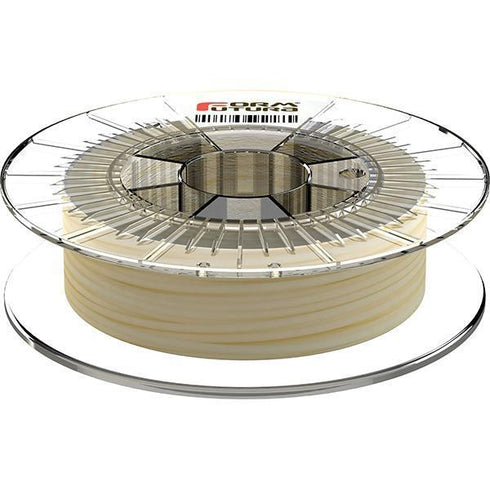

Formfutura Helios Support - Natural (2.85mm 300 gram)

Formfutura Helios Support - Natural (2.85mm 300 gram)

Zoom

Out stock

Formfutura Helios Support - Natural (2.85mm 300 gram)

Name: Formfutura Helios Support - Natural (2.85mm 300 gram)
Brand: FormFutura
SKU: HLOS-285NTRL-00300
Price: 55.0 AUD
Availability: InStock

FormFutura Helios Support is a water-soluble PVA type of 3D printer filament that is ideal as support material for complex multi-extrusion 3D printing with Styrene based filaments as build material.

$55.00

SKU: HLOS-285NTRL-00300

VENDOR: FormFutura

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

PRODUCT INFORMATION

Helios Support is a water-soluble PVA (polyvinyl alcohol) support material for complex multi-extrusion 3D printing with styrene-based materials, or thermoplastics that need to be 3D printed at elevated temperatures. Helios Support is a 3D printer filament with excellent thermal stability that can be 3D printed at nozzle temperatures up to 250° C. This makes Helios Support an ideal PVA support material with good thermal and chemical adherence to Styrene-based filaments and other materials that need to be 3D printed at higher temperatures.

Key features

Good solubility in lukewarm water

Circulating water will speed up the dissolvability process

Excellent thermal stability, resulting in minimal risk on deterioration/crystalizing inside the nozzle

Max thermal stability of 250° C, tested up to 256 seconds with no flow

Can be printed in heated build chambers up to 60° C

Biodegradable once dissolved in water

Safe dissolution in tap water

Can be disposed of in the kitchen sink, or household drain with an excess of water

Good bonding to Styrene-based materials and other (thermo)plastics that print within a similar temperature range

Good adherence to ABS, TitanX, ClearScent ABS, ApolloX, Crystal Flex, Python Flex and Volcano PLA

Applications

Reliable multi-extrusion 3D printing of complex structures that require a water-soluble support material
3D printing geometries with large overhangs, or complex hollow structures
PVA Molds

General printing guidelines *

Nozzle size: ≥ 0.15mm	Layer height: ≥ 0.1mm	Experience level: Expert
Print temp: ± 235 - 255° C *	Fan speed: 0 - 30%
Heat bed: ± 65 - 75° C	Enclosure needed: No

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

*) Once Helios Support has been used or opened from its original vacuum-sealed packaging for a while it is advised to dry the material before using again.

Filament length

*ρ: 1.23 g/cc*	50 gr coil	0.3 Kg spool
Ø 1.75mm	± 17.5m	± 105m
Ø 2.85mm	± 6.6m	± 40m

PVA compatibility overview *

	AquaSolve PVA	Atlas Support	Helios Support
ABSpro	-	-	+
ABSpro Flame Retardant	-	-	+
ApolloX	-	-	++
CarbonFil	-	++	-
Centaur PP	No data	No data	No data
