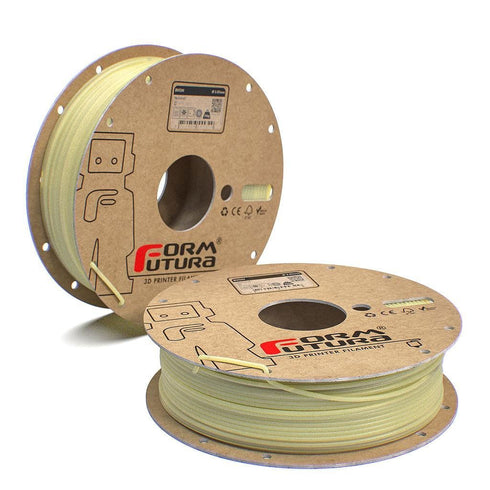

Formfutura BVOH (1.75mm 750 gram)

Formfutura BVOH is a water-soluble support filament for complex multi-extrusion 3D printing. BVOH filament 3D prints without risks of hot-end clogging and bonds to nearly all build materials.

$135.00

SKU: BVOH-175NTRL-00750

VENDOR: FormFutura

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

Formfutura BVOH (1.75mm 750 gram)

Default Title

PRODUCT INFORMATION
PRODUCT INFORMATION
Formfutura BVOH is a water-soluble support filament for complex multi-extrusion 3D printing. BVOH filament 3D prints without risks of hot-end clogging and bonds to nearly all build materials.

FormFutura's BVOH - Butenediol Vinyl Alcohol Co-polymer - 3D printer filament is an advanced water-soluble support material for complex multi-extrusion 3D printing. BVOH bonds to nearly all 'build materials' and it dissolves in water at a faster rate than PVA support materials. Its thermal stability is optimized to eliminate any risk of your hot-end clogging up by thermal degradation.

Key features

  • Good bonding with nearly all 'build materials'
  • Excellent solubility in water
  • Resistant to thermal degradation through optimized melt flow properties
  • Eco-friendly
    • Waste can be disposed of by flushing it (with water) through any regular household drain

Applications

  • Reliable multi-extrusion 3D printing of complex structures that require a water-soluble support material
    • 3D printing geometries with large overhangs or complex hollow structures
  • PVA molds

General printing guidelines *

Nozzle side: ƒ?¾ 0.15mm layer height: ƒ?¾ 0.1mm Experience level: Expert
Print temp: ¶ñ 200 - 230¶ø C * Fan speed: 0 - 30%
Heat bed: ¶ñ 65 - 75¶ø C Enclosure needed: No

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends, and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

*) Do not exceed a printing temperature of 230Ó?C for a prolonged period of time.

*) Once BVOH has been used or opened from its original vacuum-sealed packaging for a while it is advised to dry the material before using again.


Filament length

؁: 1.14 g/cc 50 gr coil 0.3 Kg spool 0.75 Kg spool
Ç? 1.75mm ¶ñ 18.2m ¶ñ 109m ¶ñ 274m
Ç? 2.85mm ¶ñ 6.9m ¶ñ 41m ¶ñ 103m

General guidelines for 3D printing with support materials like PVA and BVOH

Printing with support materials, in general, isnƒ??t plug and play and does require a fair amount of 3D printing expertise as there isnƒ??t a generic one-size-fits-all setting for multi extrusion 3D printing with PVA and/or BVOH filaments. The optimal 3D printing settings for support PVA and BVOH filaments can even vary between the same models of 3D printers.

One of the most common challenges is to establish a good bond between the PVA and/or BVOH support material and the primary build material. Below parameters are of utmost importance to establish good bonding between the 3D printing materials.

  • Verify the extrusion distance between the printed object and the support material.
    • Typically the default setting in most slicer software is set at an extrusion distance of 0.1 - 0.2mm, which is optimal for break-away support materials. For water-soluble support materials, we recommend turning this setting down to 0.0mm.
  • The displayed printing/nozzle temperature should be accurate.
    • If the temperature deviates up to or over 10¶øC from the intended printing temperature, this may negatively impact the flow of your support material. How big this deviation is wildly varies depending on the printer you're using.
  • Make sure your printer is properly leveled. Avoid height differences across the multiple nozzles.
    • To verify your nozzles are leveled, we recommend 3D printing a small rod (e.g. 5cm x 1cm with PLA) and switching nozzles every 1 - 2 layers to detect any imperfections in the layers.

Product export information

HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands

Compliance *

This filament is compliant to the directives and regulations listed below:

  • RoHS directive 2011/65/EC
  • REACH directive 1907/2006/EC

*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
