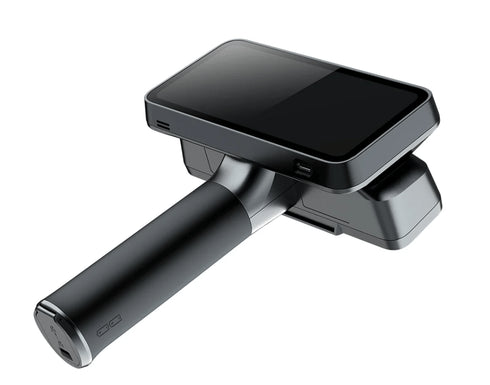

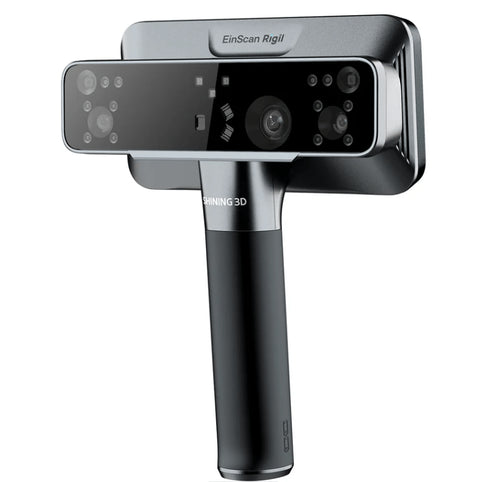

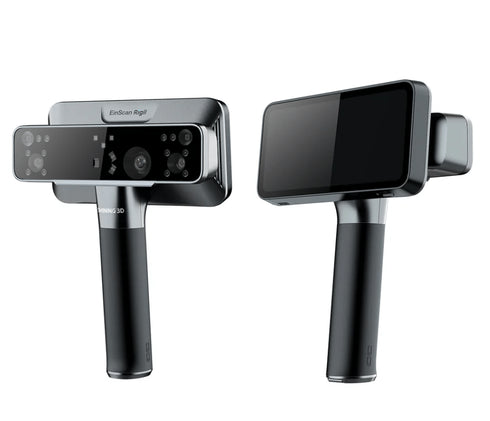

Einscan Rigil - The Tri-Mode Laser 3D scanner

Rapid, Refined, Reliable

Triple Work Modes

The EinScan Rigil offers three operation modes to unlock max performance and flexibility

• Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.

• Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.

• Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

Hybrid Light Source

• Blue laser lines

• VCSEL infrared

Laser HD Mode

Provides high-quality models with  0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.

• 19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
• 7 parallel laser lines: for fine details, provides consistent results.

Dynamic Laser Switching

Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

IR Rapid Mode

VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.

• Volumetric accuracy up to 0.1 + 0.3 mm/m
• Working distance 160 ~ 1500 mm
• Scanning speed up to 1,600,000 points/s

Marker-Free Laser Scanning

EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.

Full Color Texture Scanning

Equipped with a 5MP high-definition camera that can restore high-quality texture details,  allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

Wireless Workflow

• Wireless scanning: Without connecting to PC
• Wireless transfer: Data sharing to SHINING 3D Cloud
• Wireless screen casting: Display on a second screen

Reliable Scanning from Workshop to Outdoors

• Working efficiently in sunlight outdoors.
• Adaptable for dark and reflective metal surfaces without spray.

Powerful Hardware

• 6.4'' 2K AMOLED
• 32GB DDR5 RAM
• 32GB eMMC + 1TB SSD ROM
• 6000mAh × 2 Replaceable Batteries
