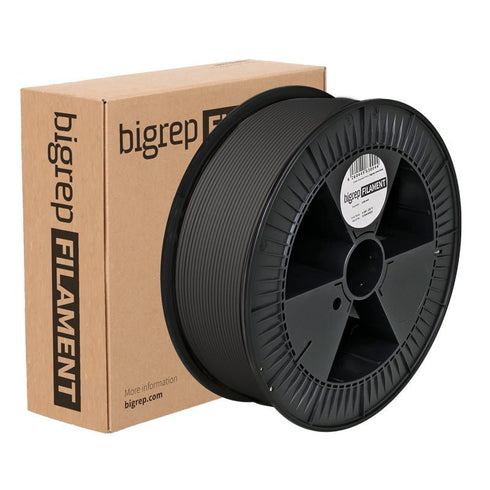

BigRep HI-TEMP CF - Dark Grey 8.0kg
SKU: 10001062
VENDOR: BigRep
Pickup available at 7A Kent Street, Yarraville, VIC
Usually ready in 4 hours
BigRep HI-TEMP CF - Dark Grey 8.0kg
Default Title
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638
Compatibility:

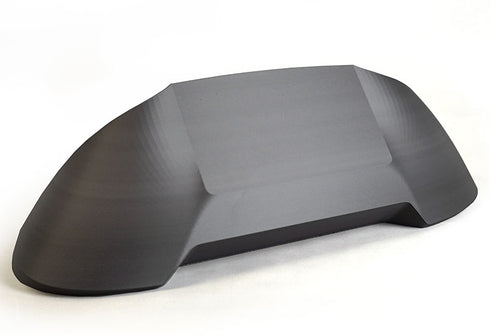

BigRep’s HI-TEMP CF is a high-strength and heat-resistant engineering-grade filament. Highly stiff and incredibly durable, the material effectively maintains its form under high heat conditions. Ideal for the thermoforming process, HI-TEMP CF is the perfect match for the production of patterns and moulds. With an excellent combination of heat and UV resistance – rivalling ASA – and durability, its also ideal for functional applications regularly exposed to heat – such as in automotive or automation.
A reliable and easy to use the material, BigRep HI-TEMP CF is optimized for large-format 3D printing and suitable for environments with limited control like factory floors.
Highlights:
- Stiff and durable parts
- Lightweight
- Heat resistant up to 115 °C
- Class A surface finish
- Low moisture absorption
PHYSICAL PROPERTIES:
| Material: | BioPolymer with carbon fibre |
| Filament Sizes: | 2.3, 4.5 and 8.0 kg |
| Diameter: | 2.85 mm |
| Density: | 1.20 g/cm³ |
| Flexural Modulus (ISO 178): | 7000 MPa |
| Tensile Strength (ISO 527): | 65 MPa |
| Impact Strength, notched (ISO 179): | 4.5 kJ/m³ |
| Heat Resistance HDT / B (ISO 750): | 115 °C |
| Hardness (Shore): (ISO 750): | n.a. |
RECOMMENDED PRINTING CONDITIONS:
| Nozzle Temperature: | 200 - 250 °C |
| Print Bed Temperature: | > 60 °C |
| Environmental Temperature: | n.a. |
| Printing Speed: | > 40 mm/s |
