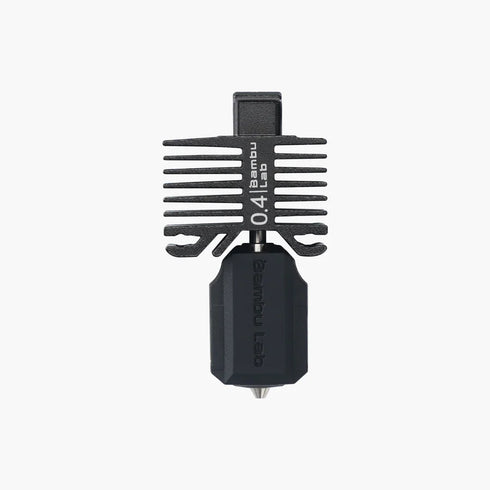

Bambu Hotend with Nozzle (for X1 Series and P1 Series)


Hotend with nozzle for the Bambu Lab P1 Series and X1 Series 3D Printers.

In the Box
- Hotend with Nozzle
- Silicone Sock x1
- Thermal Grease x1
- M3-14 Step Screws x2

Compatibility
- X1 Series
- P1 Series

$25.00

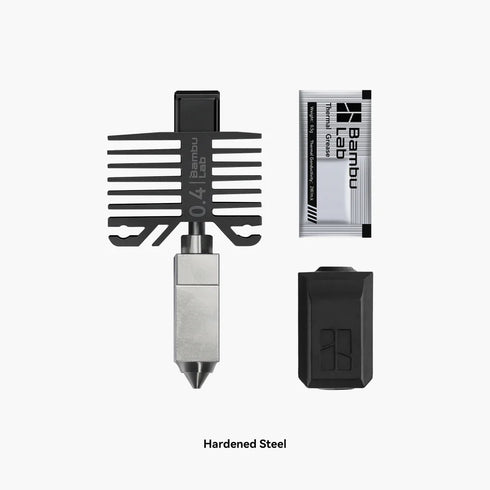

0.4mm Hardened Steel
0.6mm Hardened Steel
0.8mm Hardened Steel

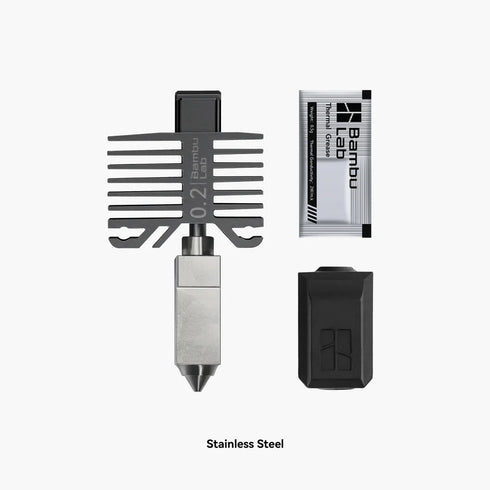

0.2mm Stainless Steel

SKU: FAH001-N-1

VENDOR: Bambu Lab

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

Bambu Hotend with Nozzle (for X1 Series and P1 Series)

0.4mm Hardened Steel

PRODUCT INFORMATION
PRODUCT INFORMATION

Filament Compatibility

Material 0.2 mm Nozzle 0.4 mm Nozzle 0.6 mm Nozzle 0.8 mm Nozzle Hardened Steel Required?
General PLA YES YES YES YES Optional
PLA Sparkle *NO YES YES YES Optional
PLA Marble *NO YES YES YES Optional
Wood/Rock/Metal-filled PLA *NO YES YES YES Optional
PETG YES YES YES YES Optional
PVA YES YES YES YES Optional
ABS YES YES YES YES Optional
ASA YES YES YES YES Optional
PC YES YES YES YES Optional
PA *NO YES YES YES Optional
TPU *NO YES YES YES Optional
Bambu PLA-CF *NO "*Highly Recommended" YES YES *Required
Bambu PETG-CF *NO "*Highly Recommended" YES YES *Required
Bambu PAHT-CF *NO YES "*Highly Recommended" YES *Required
Bambu PET-CF *NO YES "*Highly Recommended" YES *Required
CF/GF Filaments from other brands *NO Not Recommended YES YES *Required

[*Note]

  1. Filaments with carbon fiber, glass fiber, metal, or other inorganic particles are prone to clog a 0.2 mm nozzle.
  2. For filaments containing carbon fiber or glass fiber, it is highly recommended to use a hardened steel 0.6 mm nozzle to minimize the risk of clogging and abrasion.
  3. Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a hardened steel 0.4 mm nozzle, while also achieving higher print quality.

Highlights of Various Nozzle Diameters

0.2mm Nozzle
Optimal Print Fineness

Extremely small layer gaps
More detailed on the vertical print surface

fine_nozzle_vs_standard_nozzle



fine_nozzle_vs_standard_nozzle

0.2mm Nozzle
Optimal Print Fineness

Smaller diameter extrudes thin filaments
High resolution on the horizontal print surface



0.6mm and 0.8mm Nozzle
Faster Print Speed

Larger diameter extrudes more filaments per second, resulting in faster print speed

nozzle_size_vs_print_speed



图片加载失败文案

The 0.4mm nozzle is widely recognized as the standard nozzle diameter for modern 3D printers due to its optimal balance between print quality and print speed. This nozzle size is utilized in both the Bambu Lab X1 Series and P1 Series 3D printers.

Configuration of Bambu Hotend

bambu hotend configuration image



图片加载失败文案



If you need to swap your nozzle, you can either replace the Hotend with Nozzle on your original complete hotend assembly or replace the whole Complete Hotend Assembly.

In the Box

  • Hotend with Nozzle
  • Silicone Sock x1
  • Thermal Grease x1
  • M3-14 Step Screws x2

Compatibility

  • X1 Series
  • P1 Series

Product Specifications

  • Max. Printing Temp. = 300 ℃
  • Length = 47.3 mm
  • Packaging Size = 190 x 70 x 50 mm
  • Packaging Weight = 30 g
