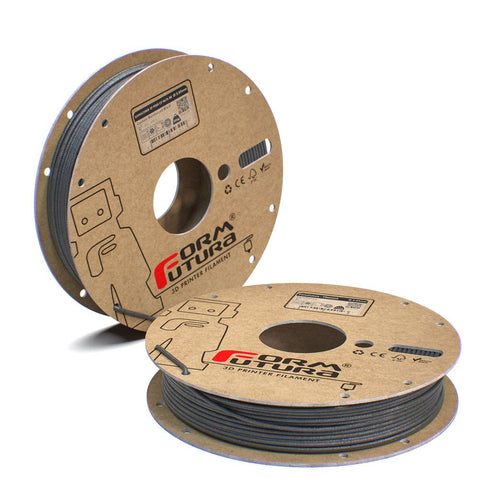

LUVOCOM 3F PEEK CF 9676 BK (1.75mm 500 gram)

FormFutura Luvocom 3F PEEK CF 9676 is a carbon-fiber reinforced PEEK (Polyether Ether Ketone) 3D printer filament that has outstanding mechanical properties combined with excellent thermal and chemical resistance properties.

$530.00

SKU: PKCF-175CRBK-00500

VENDOR: FormFutura

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

LUVOCOM 3F PEEK CF 9676 BK (1.75mm 500 gram)

Default Title

PRODUCT INFORMATION
PRODUCT INFORMATION

FormFutura Luvocom 3F PEEK CF 9676 is a carbon-fiber reinforced PEEK (Polyether Ether Ketone) 3D printer filament that has outstanding mechanical properties combined with excellent thermal and chemical resistance properties. The carbon fibers inside Luvocom 3F PEEK CF 9676 filament significantly improve the stiffness and compressive strength propterties of 3D printed parts. Parts that are 3D printed with Luvocom 3F PEEK CF 9676 filament are suitable for use in applications that will be exposed to short term service temperatures of up to 280°C and continious service temperatures up to 250°C.

Luvocom 3F PEEK CF 9676 is a 3D printer filament that is capable to 3D print parts that can replace metal and composite parts used in various industries. This carbon fiber reinforced PEEK filament unlocks industrial 3D printing applications in various industries, such as aerospace, medical, oil & gas, energy, marine, and automotive. Luvocom 3F PEEK CF 9676 filament is suitable for 3D printing dynamically-stressed parts,  chemically- and hydrolytically- resistant parts, non-flammable parts and applications which require inherent flame resistance with low smoke and low toxic gas emissions.

Key features

  • Lehvoss Luvocom 3F PEEK CF 9676 BK inside
  • Suitable for applications with a continuous service temperature of 250°C
  • Short term service temperature of 280°C (during lifetime max. 200h)
  • Heat deflection temperature of 280°C
  • Very high strength and stiffness (also in Z-direction)
  • Excellent mechanical properties
  • Non flammable
  • Exceptional chemical resistance properties



Applications

  • Dynamically-stressed parts
  • Highly chemically-resistant parts
  • Hydrolytically- resistant parts
  • Aerospace applications
  • Automotive



The PAEK family

PolyArylEtherKetone (PAEK) is a family of semi-crystalline high performance thermoplastics that are characterized by high mechanical strength and excellent resistance to temperature, chemicals and wear.
The most widely used members of the PAEK thermoplastic family are:

  • PolyEtherEtherKetone (PEEK)
  • PolyEtherKetoneKetone (PEKK)
  • PolyEtherKetone (PEK)
  • PolyEtherKetoneEtherKetoneKetone (PEKEKK)
  • PolyEtherEtherKetoneKetone (PEEKK)



General printing guidelines *

Nozzle size: ≥ 0.4mm Layer height: ≥ 0.10mm Experience level: Expert
Print temp: ± 400 – 450° C Fan speed: 0 – 25% Drying: +4 hours at max.110°C
Heat bed: ≥ 120° C Enclosure needed: 90°C heated chamber Adhesion: EasyFix Nr. VII

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.

Abrasiveness

Please be aware that LUVOCOM 3F PEEK CF 9676 BK filaments contain a relatively high concentration of extremely hard carbon fibres, which have an abrasive nature. In general these carbon fibres will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments. We recommend to use nozzles from stainless steel or other hardened alloys.

Filament length

ρ: 1.36 g/cc 0.2 Kg spool 0.5 Kg spool
Ø 1.75mm ± 61m ± 153m
Ø 2.85mm ± 23m ± 58m



Product export information

HS Code: 39169090 Description: Monofilament Country of origin: the Netherlands



Compliance *

This filament is compliant to below-listed directives and regulations.

  • RoHS directive 2011/65/EC
  • REACH directive 1907/2006/EC

*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
