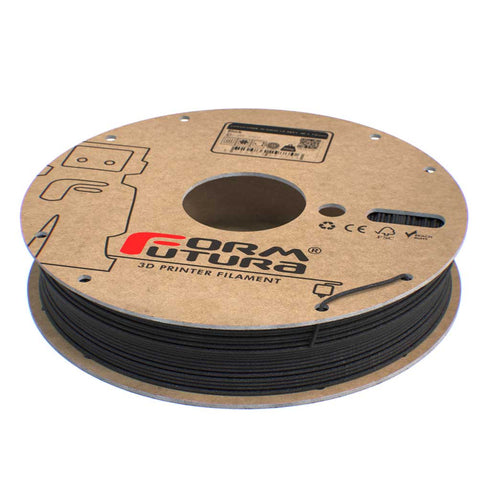

LUVOCOM 3F PAHT CF 9891 BK (1.75mm 500 gram)
SKU: 175PPAHT9891-BLK-0500
VENDOR: FormFutura
Pickup available at 7A Kent Street, Yarraville, VIC.
Usually ready in 4 hours if in stock
LUVOCOM 3F PAHT CF 9891 BK (1.75mm 500 gram)
Default Title
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638
FormFutura Luvocom 3F PAHT CF 9891 BK is a 15% carbon fiber reinforced polyamide 6 (PA6) based 3D printer filament that is extremely stiff and engineered for industrial applications. This 3D printer filament features excellent printability and processing properties that allows you to 3D print parts with mechanical strength and precision comparable to injection molded parts. This makes Luvocom 3F PAHT CF 9891 BK a perfect 3D printing filament for serial production of strong and stiff end-use parts with an extremely high dimensional accuracy.
Luvocom 3F PAHT CF 9891 BK is a carbon fiber reinforced PA6 filament that exhibits a 50% lower water uptake at a four times slower rate compared to standard PA6 nylon filaments and 3D printed parts are temperature-resistant up to 160 °C.
Key features
- Lehvoss Luvocom 3F PAHT CF 9891 BK inside
- 15% carbon fiber reinforced PA6 filament for improved stiffness
- 50% reduced water uptake at a four times slower rate compared to other PA6 filaments
- Temperature resistant up to 160 °C (200h)
- Tensile strength up to 120 MPa
- 3D prints with high dimensional accuracy and increased layer adhesion
- Good electrical properties
Applications
- Dynamically-stressed parts
- Functional prototypes
- Jigs, tools, and fixtures
- End-use parts
General printing guidelines *
Nozzle size: ≥ 0.4mm | Layer height: ≥ 0.10mm | Experience level: Expert |
Print temp: ± 260 – 270° C | Fan speed: 0 – 15% | Drying: 4h @100°C or 12h @70°C |
Heat bed: ± 70 – 80° C | Enclosure needed: No | Adhesion: EasyFix Nr. VI |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.
Abrasiveness
Please be aware that this 3D printing filament contains a relatively high concentration of extremely hard carbon fibers, which have an abrasive nature. In general these carbon fibers will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments. We recommend to use nozzles from stainless steel or other hardened alloys.
Filament length
ρ: 1.24 g/cc | 0.2 Kg spool | 0.5 Kg spool | |||
Ø 1.75mm | ± 67m | ± 168m | |||
Ø 2.85mm | ± 25m | ± 63m |
Product export information
HS Code: 39169090 | Description: Monofilament | Country of origin: the Netherlands |
Compliance *
This filament is compliant to below-listed directives and regulations.
- RoHS directive 2011/65/EC
- REACH directive 1907/2006/EC
*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
