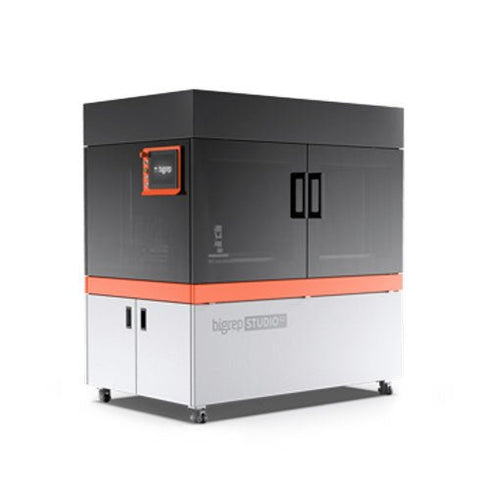

BigRep Studio G2 3D Printer

The BigRep STUDIO is an easy-to-use, large-format 3D printer specially designed for industrial applications using engineering-grade materials.

$0.00

SKU: 10000817

VENDOR: BigRep

PRODUCT INFORMATION
PRODUCT INFORMATION

Premium Efficiency for Industrial 3D Printing

German-engineered to work around the clock

The BigRep STUDIO is an easy-to-use, large-format 3D printer specially designed for industrial applications using engineering-grade materials. With a sleek, space-conscious body, perfect for the production of quality parts in any setting, the STUDIO is optimal for any workspace, from the office to the factory floor. Whether it's factory tooling, prototypes, or end-use parts, the BigRep STUDIO is a durable and cost-effective way to manufacture large-format, quality parts.

The STUDIO boasts a generous build volume of 1000 x 500 x 500 mm, 10 times that of standard desktop 3D printers. Featuring a fully enclosed build envelope and temperature-controlled filament chamber, the fast-heating STUDIO produces incredible results with advanced materials. Its high-flow STUDIO Dual Extruder (SDX) is equipped with two nozzles (either 0.6 mm or 1.0 mm diameter) optimal for printing geometrically complex parts with ASA, PETG, water-soluble support, and abrasive materials like carbon-fiber-reinforced plastic quickly and reliably.

Technical Specifications

Build Volume x 1000 y 500 z 500 mm
Materials BigRep ASA, BigRep ABS, BigRep BVOH, BigRep HI-TEMP, BigRep HI-TEMP CF, BigRep PA6/66,
BigRep PETG, BigRep PLA, BigRep PLX, BigRep PRO HT, BigRep TPU 98A
Open for use of 3rd party materials
Extruder Type Dual Fiber-Ready Extruder
Nozzle Type Tool Steel Nozzle
Nozzle Diameter 0.6 mm or 1.0 mm
Layer Height 0.1-0.6 mm
Filament diameter 2.85 mm
Nozzle Temperature 280°C max.
Build Volume Temperature 40°C max.
Print Speed 100 mm/s max.
Position Repeatability ± 0.1 mm
Bed Surface Polyimide
Bed Temperature 100°C max.
Bed Heating Time 80°C in 15 min
Materials Storage Heated Filament Chamber (max. 60°C)
Monitoring Out of Filament Sensor, Door Sensor, Webcam
Machine Dimensions x 1715 y 1170 z 1765 (mm)
Approx. Weight 550 kg
Power 208-240 V, 16 A, 50/60 Hz
Connectivity USB, LAN
Optional Fume Extraction Airflow 150 m3/h min.
Safety Certification CE
