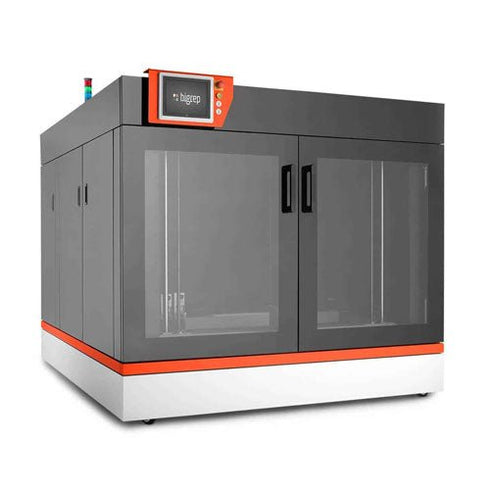

BigRep PRO 3D Printer

The Bigrep PRO prints with engineering-grade materials to ensure users can manufacture the applications they need, in large scale.

$0.00

SKU: 10000772

VENDOR: BigRep

PRODUCT INFORMATION
PRODUCT INFORMATION

Industrial Quality Meets Cost Efficiency

Complex parts in large scale

With a 1 cubic meter build volume, the BigRep PRO is a fully enclosed industrial 3D printer for producing fullscale, large parts including functional prototypes, factory tooling, patterns and molds, and end-use parts. Built for productivity throughout all stages of manufacturing, the PRO provides designers, engineers, and manufacturers with an easy-to-use, agile solution to produce faster and cheaper.

Supported by its Precision Motions Portal, a durable, custom-built gantry, along with Bosch Rexroth CNC components, the PRO consistently delivers on speed, precision, and quality. Now thanks to JUMPSTART, a new BigRep hybrid software-hardware solution that lets you skip the hassle and just start printing, the PRO is easier than ever to use.

The BigRep PRO is designed to print engineering-grade and carbon fiber-reinforced materials as well as bio-polymers and water soluble support. BigRep develops and certifies filaments specifically for the BigRep PRO and also is third party compatible meaning you can print with BigRep materials as well as other brands.

Technical Specifications

Version BigRep PRO.2
Build Volume Up to x 1020, y 970, z 985 mm (x 40, y 38, z 38.5 in)
Materials BigRep PLA, BigRep HI-TEMP, BigRep HI-TEMP CF, BigRep PRO HT, BigRep PETG, BigRep ASA, BigRep PA6/66, BigRep PA12 CF
Water Soluble BigRep BVOH
Open for use of 3rd party materials
Slicing Software BigRep BLADE
Extruders Fiber-Ready PRO ACE Extruder
Layer Heights 0.3 mm, 0.6 mm
(Other layer heights supported through slicer software)
Nozzle Diameters 0.6 mm, 1.0 mm
Speed | Acceleration (XY) Max. 600 mm/s | Max. 5000 mm/s²
Achievable Part Accuracy ±0.2mm or ±0.002mm/mm (whichever is greater)*
Material Storage 2x sealed Keep Dry filament chambers supporting up to 8 kg spools each
Machine Size x 1950 y 2500 z 2105 mm / x 77 y 98 z 83 inches (with tower)
Machine Weight Approx. 2160 kg (4762 lbs)
Power 3 Phase 400V AC, PE, 16 A, 50 / 60 Hz
Safety Certifications UL, CE, EC Machinery Directive 2006/42/EC Compliant

* accuracy depends on part geometry and material used
