FreeScan Combo Plus with Scan software

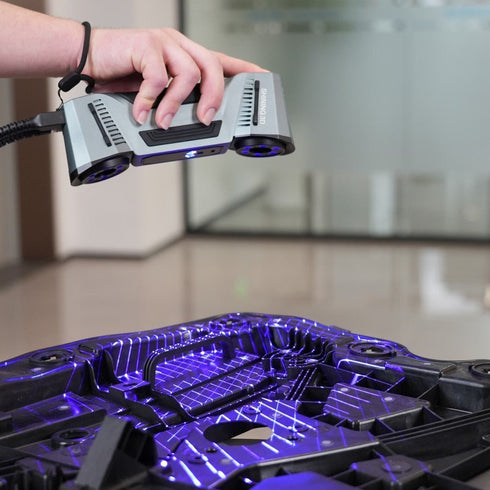

The FreeScan Combo+, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.

$28,795.00

SKU: FreeScanCPlus

VENDOR: Shining

Pickup available at 7A Kent Street, Yarraville, VIC.

Usually ready in 4 hours if in stock

FreeScan Combo Plus with Scan software

Default Title

PRODUCT INFORMATION
PRODUCT INFORMATION

Hybrid Light Source and Multifunctional Handheld 3D Scanner

▪ Light Source                Blue Laser + Infrared VCSEL

▪ Accuracy                      Up to 0.02 mm

▪ Weight                          620g

▪ Compact Size              193mm x 63mm x53mm

What's Included

  • 1 x FreeScan Combo+ Hybrid Light Source 3D Scanner
  • 1 x Calibration Board
  • 1 x USB Dongle
  • 1 x Hard Transportation Case
  • 1 x Freescan Scanning Software (Perpetual License, No Ongoing Subscription Fees)
  • 2nd Year warranty
  • 10 x decahedron tracking dice
  • 1 x Extra pack of scanning marker dots (5000 dots in total)
  • 1 x Magnetic Markers (500 in total)
  • 1 x Scanning turntable

Features

The FreeScan Combo+, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.

Design

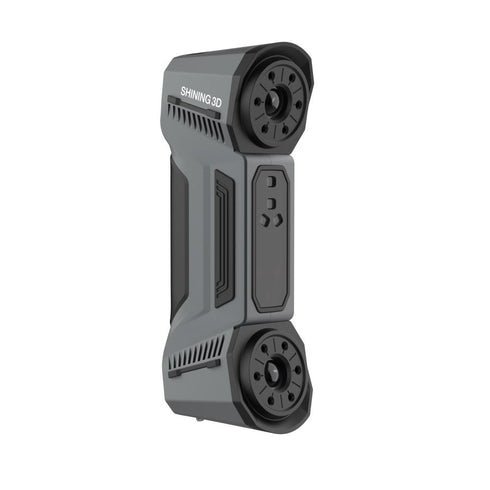

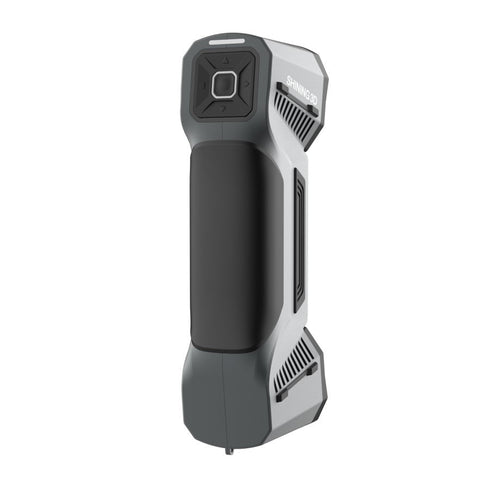

The FreeScan Combo+, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

Scanning Modes

4 scanning modes, multiple scan choices

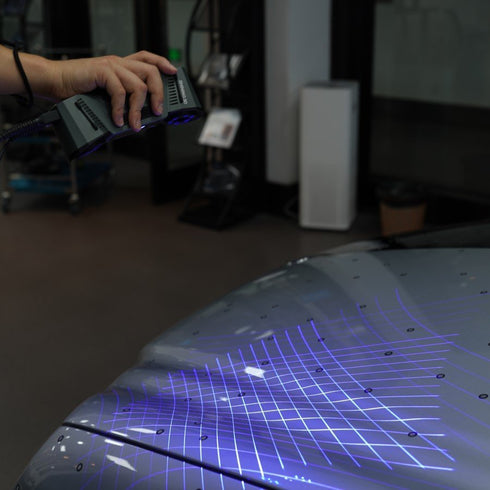

  • 25 cross blue laser lines (50 lines total) for global smooth scanning;
  • 7 parallel blue laser lines for fine scanning details;
  • 1 single blue laser lines to obtain deep hole data;
  • Infrared light source and large FOV for more applications.

Accuracy

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm. *According to VDI-VDE 2634-3

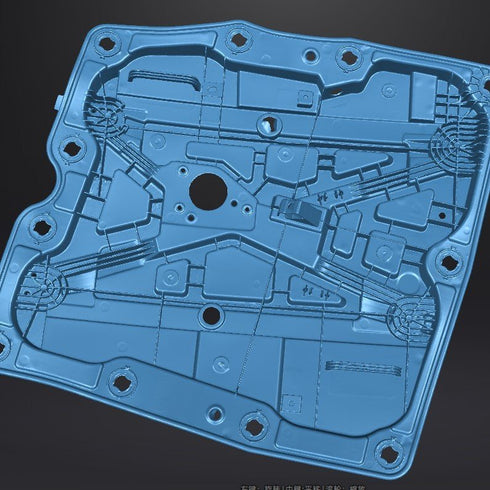

Applications

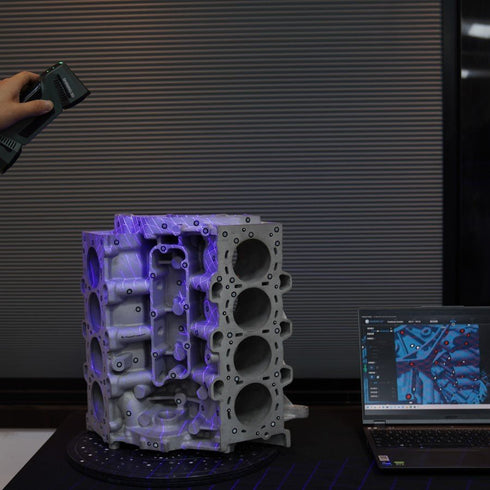

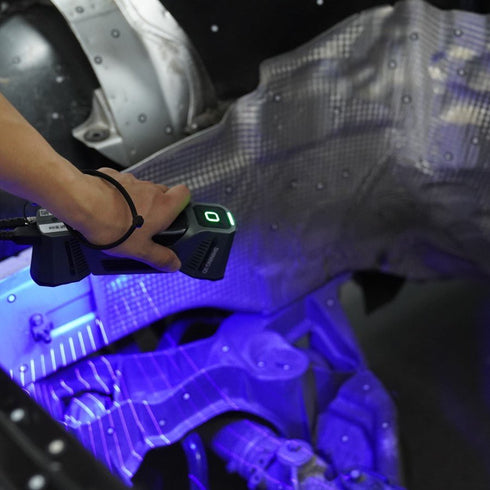

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

Specification

With its blue laser and infrared VCSEL light sources, FreeScan Combo metrology 3D scanner will help you achieve greater efficiency, productivity, and profitability. It has metrology-grade accuracy and the accuracy under the fine mode up to 0.02mm.

Scan Mode

Scan Mode

Multiple Lines Scan

Single Line Scan

Fine Scan

Infrared Scan

Light Source

50 laser lines

Single laser line

VCSEL Light Source

7 parallel laser lines

Working Distance

300 mm

300 mm

200 mm

300 mm

Scan Speed

3,600,000 points/s

1,860,000 points/s

1,860,000 points/s

2,250,000 points/s



Performance

Dimension

Laser Scan

Infrared Scan

Scan Accuracy

Up to 0.02mm

/

Volumetric Accuracy(1)

0.02 + 0.033 mm/m

0.05+0.1mm/m

Scan Depth

360 mm

Maximum 1240 mm (2)

Max FOV

520 mm x 510 mm

600mm x 600 mm

Point Distance

0.05 mm-3mm

0.1mm - 3mm



Requirements

Connection type

USB 3.0

Power Input

12V, 5.0A

Working Temperature

-20 ~ 40℃

Working Humidity

10 ~ 90%

Certification

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

Recommended Computer Configuration

OS: Win10/11, 64bit; Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory : ≥ 6G; Proccesor: I7-10700; Memory: ≥ 32GB



Notice: SHINING 3D reserves the right to modify or adjust above specifications and pictures.

(1): Based on VDI/VDE 2634 part 3 standard. Sphere-spacing error is assessed with traceable length artefacts and markers by measuring these at different locations and orientations within the working volume.

(2): Scan depth can be manually adjusted in Infrared scan mode. Maximum is 1240mm.
