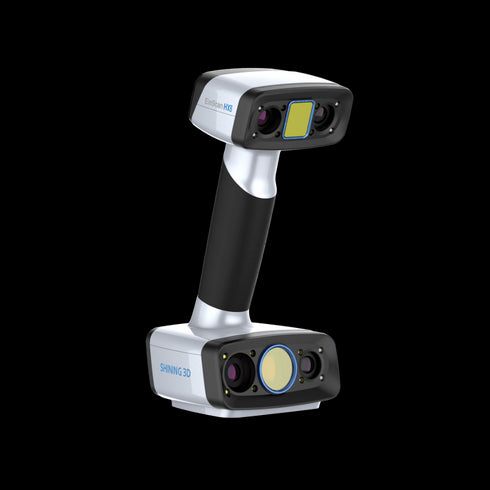

EinScan HX2 - Hybrid Handheld 3D Scanner

Name: EinScan HX2 - Hybrid Handheld 3D Scanner
Brand: Shining
SKU: EinScan HX 2
Price: 16895.0 AUD
Availability: InStock

Retaining the hybrid laser and blued LED technology, the EinScan HX2 excels in accuracy, versatility, and ease of use.

- Accuracy up to 0.04 mm
- Minimum point distance of 0.05 mm
- 1,600,000 points/s and 120 FPS under laser scan mode
- Full Color

$16,895.00

Quantity

SKU: EinScan HX 2

VENDOR: Shining

PRODUCT INFORMATION

The EinScan HX2 enhances its predecessor's features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning.

Hybrid Blue Laser & LED Light

The EinScan HX2 continues the innovative integration of hybrid blue laser and LED light technology, enhancing material adaptability for a broader range of applications. The advanced blue laser captures complete data from black and reflective surfaces with exceptional surface and environmental adaptability, now with 13 laser lines for more fast and detailed scans. The efficient LED light scanning requires no markers, enabling rapid 3D scanning without preparation.

High Accuracy & Detail

The EinScan HX2 meets the rigorous demands of industrial applications for reverse engineering and precise measurement.

-Minimum point distance of 0.05 mm

-Accuracy up to 0.04 mm under laser mode

High Efficiency

The EinScan HX2's laser scan mode reaches 1,600,000 points/s and 120 FPS, enabling rapid scans for reverse engineering, CAD/CAM, and 3D printing. It scans most objects in minutes, ensuring superior efficiency and productivity in all your 3D scanning projects.

Portable & Easy Operation

The EinScan HX2 excels in portability and ease of use with its ergonomic design and lightweight build at just 745g. Perfect for both beginners and professionals, its plug-and-play functionality and user-friendly software make 3D scanning efficient and comfortable, anywhere you go.

Full Color

With a built-in color camera, it supports full-color texture capturing and tracking in rapid scan mode.

EXScan HX Software

Your EinScan HX2 comes with access to our powerful and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs.

Step-by-step Guidance

EXScan HX software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.

Smart Data Process

EXScan HX software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results.

Regular Updates

Ensure your software stays up to date with regular updates. Stay in the loop with updates, which collaborate to enhance your hardware performance.

Supports Multi-languages

In addition to English, our software supports German, Japanese, Korean, Russian, French, Spanish, and Traditional Chinese. This list is continuously being updated

EinScan HX2 Tech Specs

AccuracyUp to 0.04 mm
Volumetric Accuracyup to 0.04 + 0.06 mm/m
Point Distance0.25 ~ 3 mm
Scan SpeedUp to 1,600,000 points/s
Max. FOV420 x 440 mm
Working Distance470 mm
Align ModeFeature / Markers / Texture / Hybrid
Light SourceBlue LED / 13 Blue Laser Crosses
