Bambu PPS-CF - Black - 1.75mm - 0.75 Kg

Zoom

Out stock

Bambu PPS-CF - Black - 1.75mm - 0.75 Kg

Name: Bambu PPS-CF - Black - 1.75mm - 0.75 Kg
Brand: Bambu Lab
SKU: T02-K0-1.75-750-SPL
Price: 199.0 AUD
Availability: OutOfStock

PPS-CF is a composite material made from carbon fiber-reinforced polyphenylene sulfide. The combination of PPS resin and carbon fiber gives PPS-CF exceptional properties, including excellent resistance to solvents, corrosion, heat, and flames. Additionally, it offers superior strength, stiffness, and dimensional stability, making it a specialized engineering plastic that meets the demands of unique and challenging applications.

- Ultra-High Heat Resistance
- Top-tier Flame Retardancy
- Peerless Mechanical Properties
- Solvent and Chemical Resistance
- Ultra-Low Water Absorption
- For X1E Printing Only
- NOT compatible with 0.2 mm Nozzle
- Must Be Dried before Use to Achieve Optimal Print Quality
- AMS NOT Compatible

$199.00

Colour:

Black

SKU: T02-K0-1.75-750-SPL

VENDOR: Bambu Lab

Pickup currently unavailable at 7A Kent Street, Yarraville, VIC

PRODUCT INFORMATION

Product Features

Ultra-High Heat Resistance
Top-tier Flame Retardancy
Peerless Mechanical Properties
Solvent and Chemical Resistance
Ultra-Low Water Absorption

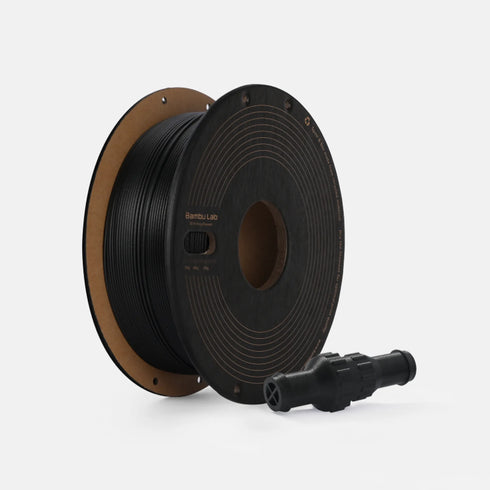

Comes with Cardboard Spool
Diameter: 1.75 mm +/- 0.05 mm

Cautions for use

For X1E Printing Only
NOT compatible with 0.2 mm Nozzle
Stainless Steel Nozzle NOT Recommended
Must Be Dried before Use to Achieve Optimal Print Quality
AMS NOT Compatible

Ultra-High Heat Resistance

PPS-CF boasts a heat deflection temperature of up to 264°C under 0.45 MPa and can continuously operate at temperatures exceeding 200°C. This significantly outperforms normal PA-CF materials, which have maximum temperatures around 190°C and 120°C. Its exceptional heat resistance ensures outstanding creep resistance, making PPS-CF ideal for demanding industrial environments and applications.

Filament Type

PLA Basic

ABS

PC

Normal

PA-CF

PA6-CF

PET-CF

PPA-CF

PPS-CF

Heat Deflection Temperature / ℃ (0.45 MPa)

57 ℃

87 ℃

117 ℃

184 ℃

186 ℃

205 ℃

227 ℃

264 ℃

Superior Flame Retardancy

PPS-CF achieves a UL-94 V-0 flame retardant rating, offering superior safety and reliability in critical areas such as electronics and automotive components. PPS-CF provides long-lasting durability and peace of mind even in the most demanding environments.

Unmatched Mechanical Properties

Combining the stiffness of PPS polymers with the reinforcing power of carbon fiber, PPS-CF offers exceptional stiffness, bending strength, and tensile strength. Its superior dimensional stability and resistance to warping ensure that large-scale prints maintain precision and avoid deformation during the printing process, making it perfect for high-precision applications.

	PET-CF	PPS-CF	Improved %
Stiffness (Bending Modulus - XY, Dry State)	5320 MPa	7160 MPa	34.59%
Strength (Bending Strength - XY, Dry State)	131 MPa	142 MPa	8.40%

Solvent and Chemical Resistance

PPS-CF offers outstanding solvent and chemical resistance, second only to PTFE (Teflon). It remains virtually insoluble in any solvent below 200°C and exhibits exceptional resistance to acids, bases, and salts under normal conditions. This makes PPS-CF the ideal choice for challenging environments where chemical stability is critical.

Ultra-Low Water Absorption

With an extremely low moisture absorption rate of just 0.05%, PPS-CF ensures that its mechanical and thermal properties remain stable even in humid conditions. Unlike normal PA-CF, which can soften and degrade when exposed to moisture, PPS-CF maintains its strength and durability, making it the superior option for applications requiring high moisture resistance.

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	Smooth PEI Plate, Textured PEI Plate	Cool Plate SuperTack
Hotend	Hotend with Hardened Steel Nozzle 0.6 mm (recommended) / 0.4 mm / 0.8 mm	Hotend with Stainless Steel Nozzle (all size) Hotend with Hardened Steel Nozzle (0.2 mm)
Glue	Glue Stick	Bambu Liquid Glue
AMS	/	AMS & AMS Lite

It is recommended to use a 0.6 mm Hardened Steel nozzle to avoid clogging while maintaining optimal print quality.

Parameters Comparison

	PPS-CF	PET-CF	PA6-CF
Composition	Polyphenylene sulfide (PPS), Carbon Fiber	Polyethylene terephthalate (PET), Carbon Fiber	Nylon6 (PA6), Carbon Fiber
AMS & AMS lite Compatibility	Not Compatible	Not Compatible	Not Compatible
Dry before Use	Required	Required	Required
Sealed during Printing	Sealed with desiccant	Sealed with desiccant	Sealed with desiccant
Printer Type	Enclosed	Enclosed (Recommended) / Open-frame	Enclosed
Nozzle	Hardened Steel 0.6 mm (recommended) / 0.4 mm / 0.8 mm	Hardened Steel 0.6 mm (recommended) / 0.4 mm / 0.8 mm	Hardened Steel 0.6 mm (recommended) / 0.4 mm / 0.8 mm
Nozzle Temperature	310 - 340 ℃	260 - 300 ℃	260 - 300 ℃
Bed Temperature	100 - 120 ℃	80 - 110 ℃	100 - 110 ℃
Toughness (Impact Strength - XY, Dry State)	27.8 kJ/m²	36.0 kJ/m²	40.3 kJ/m²
Toughness (Impact Strength - XY, Wet State)	27.8 kJ/m²	37.3 kJ/m²	57.2 kJ/m²
Strength (Bending Strength - XY, Dry State)	142 MPa	131 MPa	151 MPa
Strength (Bending Strength - XY, Wet State)	142 MPa	127 MPa	95 MPa
Layer Strength (Bending Strength - Z, Dry State)	36 MPa	49 MPa	80 MPa
Layer Strength (Bending Strength - Z, Wet State)	36 MPa	46 MPa	45 MPa
Stiffness (Bending Modulus - XY, Dry State)	7160 MPa	5320 MPa	5460 MPa
Stiffness (Bending Modulus - XY, Wet State)	7160 MPa	5240 MPa	3560 MPa
Layer Adhesion (Impact Strength - Z, Dry State)	2.8 kJ/m²	4.5 kJ/m²	15.5 kJ/m²
Heat Resistance (HDT, 0.45 MPa, Dry State)	264 ℃	205 ℃	186 ℃
Saturated Water Absorption Rate (25 °C, 55% RH)	0.05%	0.37%	2.35%

Recommended Printing Settings		Physical Properties		Mechanical Properties
Drying Settings (Blast Drying Oven)	100-140 °C，8 -12h	Density	1.26 g/cm³	Tensile Strength	87 ± 5 MPa
Printing and Keeping Container's Humidity	< 20% RH (Sealed, with Desiccant)	Vicat Softening Temperature	268 °C	Breaking Elongation Rate	1.2 ± 0.4 %
Nozzle Temperature	310 - 340 °C	Heat Deflection Temperature	264 °C	Bending Modulus	7160 ± 280 MPa
Bed Temperature (with Glue)	100-120 °C	Melting Temperature	284 °C	Bending Strength	142 ± 5 MPa
Printing Speed	< 100 mm/s	Melt Index	11.48 ± 1.23 g/10 min	Impact Strength	27.8 ± 2.3 kJ/m²

Downloads

Filament TDS

Filament MSDS

Filament RoHS

Printing Tips

Bambu PPS-CF Printing Guidelines:
- Nozzle Temperature: Recommended range is 310 to 340°C.
- Chamber Temperature: Recommended range is 60 to 90°C.
- Tip: Using higher values within these ranges can enhance the mechanical properties of the printed parts, especially in the Z-direction.
Drying Recommendations:
- Drying Temperature:
In a blast drying oven: 100°C to 140°C for 8 to 12 hours.

On an X1 printer's heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).
- Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.
- Additional Information: For more details, refer to Printing tips for Engineering materials on WIKI.
Storage Tips:
- Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
- For Further Details: Please refer to Printing tips for Engineering materials on WIKI.
Annealing Prints:
- If you need to anneal the prints, please refer to the Technical Data Sheet (TDS) and the WIKI section Work After Printing Finished.
