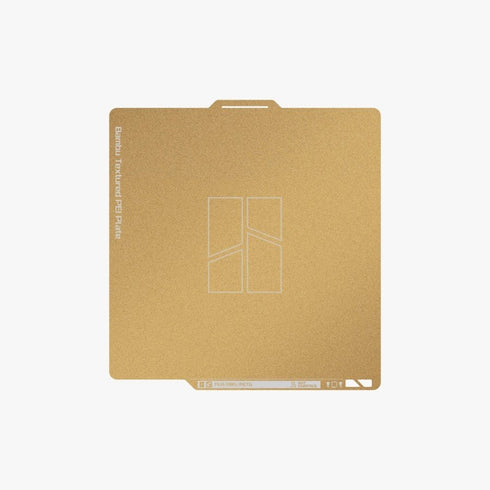

Bambu Textured PEI Plate (Dual-Sided) - X1/P1
SKU: FAP007
VENDOR: Bambu Lab
Pickup available at 7A Kent Street, Yarraville, VIC.
Usually ready in 4 hours if in stock
Bambu Textured PEI Plate (Dual-Sided) - X1/P1
Default Title
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638
Strong adhesion and effortless print removal for a superior printing experience
- Excellent first-layer adhesion
- Improved durability
- Compatibility with various filaments
- *Suitable for Bambu Lab X1 Series and P1 Series
Recommended Settings
Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements
Materials | Heatbed Temperature | Glue Stick Required? | Upper Glass Cover Plate Removed? |
PLA/PLA-CF/PLA-GF | 45~60℃ | No | Yes |
ABS | 90~100℃ | No | No |
PETG/PETG-CF | 60~80℃ | No | No |
PET-CF | 80~100℃ | No | No |
TPU | 35~45℃ | Yes | Yes |
ASA | 90~100℃ | No | No |
PVA | 45~60℃ | Yes | No |
Excellent first-layer adhesion, Improved durability
Self-release when cooled down
PEI is an excellent material for 3D printing applications due to its ability to withstand the repeated heating and cooling cycles of a printer heatbed. Prints come off easily when the temperature of the heatbed reaches room temperature, and we always recommend waiting until it reaches 35℃ or lower. If the print is still adheres to the plate, simply bend the steel plate and the model will fall right into your hands.
Compatibility with various filaments
PEI allowing it to print not only common materials such as PLA, TPU, and PETG, but also materials that require high temperatures like ABS and Nylon.
Prevent warping with reliable magnetic adhesion
The Bambu Texture PEI Plate features a 0.5mm thick stainless steel plate that enhanced magnetic adhesion. This helps to prevent warping and ensure optimal print quality during 3D printing, reducing the likelihood of the first layer detaching due to deformation. It also helps when printing larger models in materials that are prone to warping like ABS, PC and Nylon.
Textured surface finish
Bambu Texture PEI Plate offers a one-of-a-kind first-layer surface. Through the application of a powder-coating process, this PEI Build Plate creates a rugged texture that adds a texture to your prints.
Considerations
- Increasing heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
- Before auto-leveling, it is necessary to repeatedly rub the nozzle in the special wiping area of the build plate to completely remove any residual material at the tip of the nozzle. The coating in the specially designed wiping area will gradually become worn over time. This is normal and does not affect print quality or nozzle lifetime, so there is no need to worry about any quality issues.
- Deposition of dust and grease on the build plate decreases adhesion. It is recommended to regularly clean the surface with detergent and water to maintain best adhesion.
- Bambu Lab recommends only using Bambu Lab official glue on the Bambu Lab build plates, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates. Do not clean the Textured PEI with Acetone, as it will damage the PEI surface.
- Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
- Carefully sanding the surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
- After algorithm optimization, the Textured PEI Plate is now compatible with the
Micro Lidar.
- The Textured PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
Installation Steps
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform
Product Specification
Material |
PEI powder coating+ magnetic Stainless Steel Plate
|
Surface temperature resistance
|
Up to 180℃ |
Flexible stainless steel plate thickness |
0.5 mm
|
Textured PEI coating thickness
|
0.075 mm
|
Usable print size
|
256*256 mm
|
Package size
|
300*270*17 mm
|
Package weight
|
450 g
|
Colour
|
Gold
|
