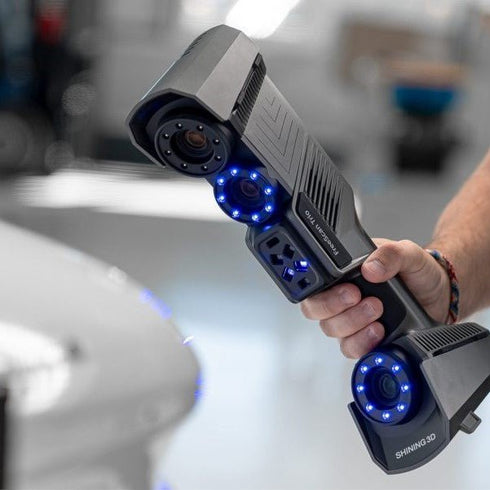

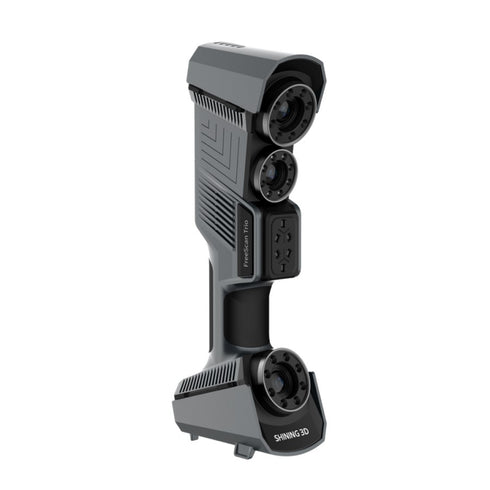

FreeScan Trio with Scan software

With its fast and innovative 98-laser-line mode, the FreeScan Trio is SHINING 3D’s first marker-free laser 3D scanner. Less preparation, more efficiency.
The FreeScan Trio’s three additional laser scanning modes deliver unrelenting accuracy, each reaching up to 0.02mm with markers. This metrology device also features built-in photogrammetry to offer an impressive volumetric accuracy of up to 0.02mm + 0.15mm/m. Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.

$58,995.00

SKU: FreeScanT

VENDOR: Shining

PRODUCT INFORMATION
PRODUCT INFORMATION

FreeScan Trio - First Marker-Free Laser 3D Scanner

With its fast and innovative 98-laser-line mode, the FreeScan Trio is SHINING 3D’s first marker-free laser 3D scanner. Less preparation, more efficiency.
The FreeScan Trio’s three additional laser scanning modes deliver unrelenting accuracy, each reaching up to 0.02mm with markers. This metrology device also features built-in photogrammetry to offer an impressive volumetric accuracy of up to 0.02mm + 0.15mm/m.

Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.



What's Included

  • 1 x FreeScan Trio 3D Scanner
  • 1 x Photogrammetry Scales Bars
  • 1 x Transportation Case
  • 1 x Scanning Software (Perpetual License, No Ongoing Subscription Fees)

Scanning Modes

4 scanning modes, multiple scan choices

  • 98 laser lines: Marker-free, ultra-fast scan speed of up to 3,010,000 points/s
  • 26 laser lines: 650x580mm FOV for fast 3D scanning
  • 7 laser lines: Industrial-grade, 5MP cameras to capture exceptional detail
  • 1 laser line: Optimized camera angle for pockets and holes

Accuracy

For quality control, inspection, and reverse engineering, its 0.02 mm accuracy (with markers) and high-precision performance deliver results you can count on, time and time again. * Data generated with the 26 laser line mode. Compared to the CAD file.3

Photogrammetry

The FreeScan Trio features a built-in photogrammetry mode that can achieve a remarkable volumetric accuracy of up to 0.02mm + 0.015mm/m. Place markers and just one magnetic scale bar and the FreeScan Trio will quickly lock in the spatial position of the target frame.

Scan Modes

Scan Mode

Multiple Lines Scan

Single Line Scan

Fine Detail Scan

98 Lines Scan

Light Source

26 laser lines

Single laser line

7 parallel laser lines

98 laser lines

Working Distance

300 mm

300 mm

200 mm

300 mm

Scan Accuracy Up to 0.02mm Up to 0.02mm Up to 0.02mm Up to 0.02mm

Scan Speed

3,010,000 points/s

3,010,000 points/s

3,010,000 points/s

3,010,000 points/s



Performance

Laser Class

Class Ⅱ(eye safe)

Volumetric Accuracy*

0.02 + 0.033 mm/m (0.02 + 0.015mm/m with photogrammetry)

Scan Depth

360 mm

Max FOV

650 mm x 5800 mm

Point Distance

0.01 mm-3mm



Requirements

Connection type

USB 3.0

Power Input

12V, 5.0A

Working Temperature

-20 ~ 40℃

Working Humidity

10 ~ 90%

Certification

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

Recommended Computer Configuration

OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory: ≥6G; Processor: I7-10700; Memory: ≥64GB
