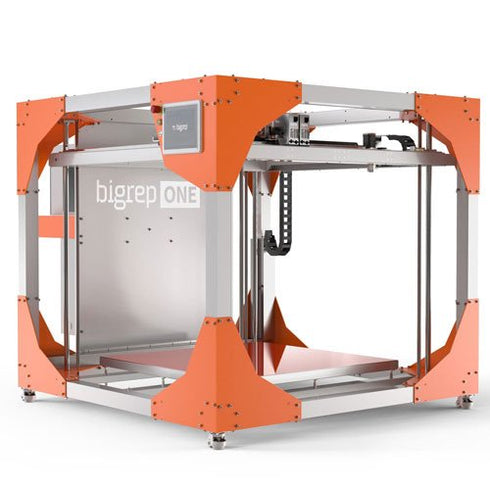

Bigrep ONE 3D Printer

The BigRep ONE is an award-winning, large-format 3D printer at an accessible price point.

$0.00

SKU: 10000438

VENDOR: BigRep

PRODUCT INFORMATION
PRODUCT INFORMATION

Large-Scale Innovation. Limitless Creativity.

German-engineered to work around the clock

The BigRep ONE is an award-winning, large-format 3D printer at an accessible price point. With over 350 systems installed worldwide, it’s a trusted tool of designers, innovators, and manufacturers alike. Featuring a massive one-cubic-meter build volume, the fast and reliable ONE brings your designs to life in full scale.

Perfect for prototyping, production, and a wide range of applications, the ONE comes equipped with one BigRep fiber-ready Power Extruder (PEX) that features interchangeable 0.6, 1.0, and 2.0 mm nozzles for maximum detail or high-flow additive manufacturing.

Configure your 3D printer

Configure your custom ONE and choose from single, dual, or twin extruder modes plus add-ons like an enclosed housing and even the printer’s color to create the perfect machine just for you. As your 3D printing needs evolve, simply upgrade your ONE with additional features to grow along with you.
Modules & Add-Ons: Benefit from packages that are tailored to your needs and applications. Only pay for what you really need for your daily work.



single

SINGLE MODE

Robust solution at minimal cost, perfect for beginners. Print your large-format parts using one extruder for both the model and the support!

dual

DUAL MODE

Expand your print capabilities and get higher quality surfaces by enabling the second extruder and using water-soluble support filament or mix two filaments with different mechanical proprieties for more complex applications!


twin

TWIN MODE

Double your production, cut cost and time-to-part by 50%! Print two same parts at a time using the two extruders simultaneously.

  • ENCLOSURE ADD-ON: Our new transparent printer housing and safety concept with automatic door sensors provide a more constant printing environment.
  • CAMERA ADD-ON: Monitor your print remotely via webcam from any computer or mobile device and check the progress of your print.
  • KEEP-DRY ADD-ON: Our new Keep-Dry-Box protects the filament from dust and moisture for optimal printing results, particularly for filaments that are sensitive to moisture.
  • CUSTOM COLOR ADD-ON:  Customize your printer and replace the standard BigRep orange corners with the paint color of your choice.

Technical Specifications

Version BigRep ONE.4
Build Volume x 1005 y 1005 z 1005 (mm) / x 39.5 y 39.5 z 39.5 (inch)
Layer Height 0.3mm, 0.6mm, 1.0mm
Other layer heights supported through slicer software
Max. speed | Max. acceleration 500mm/s | 400mm/s²
Extruder Fiber-Ready Power Extruder (PEX)
Interchangeable nozzles with fiber-ready 0.6mm / 1.0mm nozzles and high-throughput 2.0mm nozzle
Materials BigRep HI-TEMP, BigRep HI-TEMP CF, BigRep PETG, BigRep PLA, BigRep PLX, BigRep PRO HT, BigRep TPU 98A
Open for use of 3rd party materials
Support Materials BigRep BVOH
Open for use of 3rd party materials
Print Bed Temperature Max. 80°C (176°F)
Printer Weight Approx. 460kg (1,014 lbs)
Size x 1850 y 2250 z 1725 (mm) / x 72.8 y 88.6 z 67.9 (inches)
Power 208V – 240V, 16A, 50/60Hz
Max. temperature 80°C
Safety Certifications CE approved (with enclosure)
