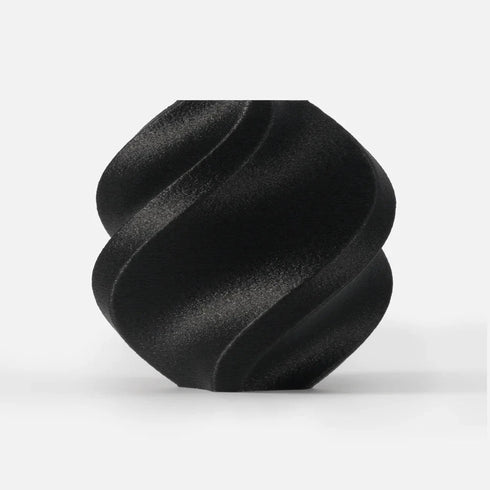

Bambu PAHT-CF
SKU: N04-K0-1.75-500-SPL
VENDOR: Bambu Lab
Pickup available at 7A Kent Street, Yarraville, VIC.
Usually ready in 4 hours if in stock
Bambu PAHT-CF
Black / 0.5Kg
7A Kent Street, Yarraville, VIC
7A Kent Street
Yarraville VIC 3013
Australia
03 9687 8638
Product Features
- Low Moisture Absorption
- Exceptional Mechanical Properties & Layer Adhesion
- High Tensile Strength
- Comes with High Temperature Reusable Spool
- Diameter: 1.75mm +/- 0.03mm
Cautions for use
- NOT compatible with 0.2 mm Nozzle
- Stainless Steel Nozzle NOT Recommended
- Dry before Use
- AMS Compatible
- Enclosure Printer Required
Mechanical Properties Comparison
| Normal PA-CF | PAHT-CF | |
| Saturated Water Absorption Rate/% ( 25 °C, 55% RH ) | 1.70 | 0.88 |
| Bending Strength - XY/MPa (Dry) | 128 | 125 |
| Bending Strength - XY/MPa (Wet) | 76 | 115 |
| Bending Strength - Z/MPa (Dry) | 48 | 61 |
| Bending Strength - Z/MPa (Wet) | 34 | 49 |
| Bending Modulus - XY/MPa (Dry) | 4420 | 4230 |
| Bending Modulus - XY/MPa (Wet) | 2210 | 3640 |
| Bending Modulus - Z/MPa (Dry) | 1470 | 1820 |
| Bending Modulus - Z/MPa (Wet) | 770 | 1480 |
| Decline rate of mechanical properties after absorbing water/% | 40%-45% | 12%-18% |
*Both PA-CF and PAHT-CF need to be dried at 80 °C for 12 hours before printing.
Exceptional Z-bonding
Bambu PAHT-CF shows much higher adhesion in Z layers compared to normal PA-CF,
bringing it the ability to withstand high levels of impact or stress without breaking or deforming.
Z-layer Performance
| Normal PA-CF | PAHT-CF | Improved % | |
| Bending Strength - Z/MPa | 48 | 61 | 27% |
| Bending Modulus - Z/MPa | 1470 | 1820 | 24% |
| Impact Strength - Z/(kJ/m²) | 5.7 | 13.3 | 133% |
*Both PA-CF and PAHT-CF need to be dried at 80 °C for 12 hours before printing.
High tensile strength
Bambu PAHT-CF is designed to meet the demands of various industrial
and engineering applications where high strength and durability are required.
Designed for high-temperature resistance
The heat deflection temperature of Bambu PAHT-CF is up to 194℃ (0.45MPa)*, making it useful in applications where the printed parts may be exposed to high temperatures without deforming or losing their strength.
*The long-term temperature resistance is related to the structure and usage scenario of the model itself.
RFID for Intelligent Printing
All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System). Load and print! No more tedious setting steps.
Accessory Compatibility
| Recommended | Not Recommended | |
| Build Plate | High Temperature Plate Engineering Plate | Cool Plate |
| Hotend | Hotend with Hardened Steel Nozzle (0.6 mm, 0.4 mm, 0.8 mm)* | Hotend with Stainless Steel Nozzle (all size) Hotend with Hardened Steel Nozzle (0.2 mm) |
| Glue | Glue Stick | Bambu Liquid Glue |
Parameters Comparison
| PET-CF | PAHT-CF | |
| Composition | PET, carbon fiber | PA 12 and other long-chain PA, carbon fiber |
| Hotend Compatibility | Hardened Steel 0.6 (recommended), 0.4, 0.8 mm | |
| Build Plate Compatibility | Engineering Plate, High Temperature Plate, Textured PEI Plate | |
| Glue | Glue Stick / Liquid Glue | Glue Stick |
| AMS Compatibility | NO | YES |
| Print Speed | < 100 mm/s | < 100 mm/s |
| Toughness (Impact Strength - XY) | 36.0 kJ/m² | 57.5 kJ/m² |
| Strength (Bending Strength - XY) | 131 MPa | 125 MPa |
| Stiffness (Bending Modulus - XY) | 5320 MPa | 4230 MPa |
| Layer Adhesion (Impact Strength - Z) | 4.5 kJ/m² | 13.3 kJ/m² |
| Heat Resistant（HDT, 0.45 MPa） | 205 °C | 194 °C |
| Saturated Water Absorption Rate / % (25 °C，55% RH) | 0.37 | 0.88 |
Recommended Printing Settings |
Physical Properties |
Mechanical Properties |
|||||
| Drying Settings (Blast Drying Oven) | 80 °C，8 -12h | Density | 1.06 g/cm³ | Tensile Strength | 92 ± 7 MPa | ||
| Printing and Keeping Container's Humidity | < 20% RH (Sealed, with Desiccant) | Vicat Softening Temperature | 220 °C | Breaking Elongation Rate | 8.4 ± 1.8 % | ||
| Nozzle Temperature | 260 - 290 °C | Heat Deflection Temperature | 194 °C | Bending Modulus | 4230 ± 210 MPa | ||
| Bed Temperature (with Glue) | 80-100 °C | Melting Temperature | 225 °C | Bending Strength | 125 ± 7 MPa | ||
| Printing Speed | < 100 mm/s | Melt Index | 14.4 ± 2.0 g/10 min | Impact Strength | 57.5 ± 3.4 kJ/m² | ||
What's in the Box:
 |
 |
 |
|
Filament x1 & Desiccant x1 |
Package x1 |
Filament Label x1 |
